COLLECTIVE VARIABLES MODULE

Reference manual for LAMMPS

Code version: 2024-03-12

Updated versions of this manual: [GROMACS] [LAMMPS] [NAMD] [Tinker-HP] [VMD]

Alejandro Bernardin, Haochuan Chen, Jeffrey R. Comer, Giacomo Fiorin, Haohao Fu, Jérôme
Hénin, Axel Kohlmeyer, Fabrizio Marinelli, Hubert Santuz, Joshua V. Vermaas, Andrew D.
White

1 Overview

2 Writing a Colvars configuration: a crash course

3 Enabling and controlling the Colvars module in LAMMPS

3.1 Units in the Colvars module

3.2 LAMMPS keywords

3.3 Using the scripting interface to control the Colvars module

3.3.1 Setting up the Colvars module

3.3.2 Loading and saving the Colvars state and other information

3.3.3 Accessing atomic data

3.3.4 Managing collective variables

3.3.5 Applying and analyzing forces on collective variables

3.3.6 Managing collective variable biases

3.3.7 Loading and saving the state of individual biases

3.4 Configuration syntax used by the Colvars module

3.5 Global keywords

3.6 Input state file

3.6.1 Restarting in LAMMPS.

3.6.2 Changing configuration upon restarting.

3.7 Output files

3.8 File formats

3.8.1 Configuration and state files.

3.8.2 Index (NDX) files

3.8.3 XYZ coordinate files

3.8.4 Grid files: multicolumn text format

3.8.5 Output trajectory files

4 Defining collective variables

4.1 Choosing a function

4.2 Treatment of periodic boundary conditions

4.3 Distances

4.3.1 distance: center-of-mass distance between two groups.

4.3.2 distanceZ: projection of a distance vector on an axis.

4.3.3 distanceXY: modulus of the projection of a distance vector on a plane.

4.3.4 distanceVec: distance vector between two groups.

4.3.5 distanceDir: distance unit vector between two groups.

4.3.6 distanceInv: mean distance between two groups of atoms.

4.4 Angles

4.4.1 angle: angle between three groups.

4.4.2 dipoleAngle: angle between two groups and dipole of a third group.

4.4.3 dihedral: torsional angle between four groups.

4.4.4 polarTheta: polar angle in spherical coordinates.

4.4.5 polarPhi: azimuthal angle in spherical coordinates.

4.5 Contacts

4.5.1 coordNum: coordination number between two groups.

4.5.2 selfCoordNum: coordination number between atoms within a group.

4.5.3 hBond: hydrogen bond between two atoms.

4.6 Collective metrics

4.6.1 rmsd: root mean square displacement (RMSD) from reference positions.

4.6.2 Advanced usage of the rmsd component.

4.6.3 eigenvector: projection of the atomic coordinates on a vector.

4.6.4 gyration: radius of gyration of a group of atoms.

4.6.5 inertia: total moment of inertia of a group of atoms.

4.6.6 dipoleMagnitude: dipole magnitude of a group of atoms.

4.6.7 inertiaZ: total moment of inertia of a group of atoms around a chosen axis.

4.7 Rotations

4.7.1 orientation: orientation from reference coordinates.

4.7.2 orientationAngle: angle of rotation from reference coordinates.

4.7.3 orientationProj: cosine of the angle of rotation from reference coordinates.

4.7.4 spinAngle: angle of rotation around a given axis.

4.7.5 tilt: cosine of the rotation orthogonal to a given axis.

4.7.6 eulerPhi: Roll angle from references coordinates.

4.7.7 eulerTheta: Pitch angle from references coordinates.

4.7.8 eulerPsi: Yaw angle from references coordinates.

4.8 Raw data: building blocks for custom functions

4.8.1 cartesian: vector of atomic Cartesian coordinates.

4.8.2 distancePairs: set of pairwise distances between two groups.

4.9 Geometric path collective variables

4.9.1 gspath: progress along a path defined in atomic Cartesian coordinate space.

4.9.2 gzpath: distance from a path defined in atomic Cartesian coordinate space.

4.9.3 linearCombination: Helper CV to define a linear combination of other CVs

4.9.4 customColvar: Helper CV to define a mathematical expression as CV from other CVs

4.9.5 gspathCV: progress along a path defined in CV space.

4.9.6 gzpathCV: distance from a path defined in CV space.

4.10 Arithmetic path collective variables

4.10.1 aspathCV: progress along a path defined in CV space.

4.10.2 azpathCV: distance from a path defined in CV space.

4.10.3 aspath: progress along a path defined in atomic Cartesian coordinate space.

4.10.4 azpath: distance from a path defined in atomic Cartesian coordinate space.

4.11 Dense neural network in CV space (MLCV)

4.12 Shared keywords for all components

4.13 Periodic components

4.14 Non-scalar components

4.14.1 Calculating total forces

4.15 Linear and polynomial combinations of components

4.16 Custom functions

4.17 Defining grid parameters for a colvar

4.18 Trajectory output

4.19 Extended Lagrangian

4.20 Multiple time-step variables

4.21 Backward-compatibility

4.22 Statistical analysis

5 Selecting atoms

5.1 Atom selection keywords

5.2 Moving frame of reference.

5.3 Treatment of periodic boundary conditions.

5.4 Performance of a Colvars calculation based on group size.

6 Biasing and analysis methods

6.1 Thermodynamic integration

6.2 Adaptive Biasing Force

6.2.1 ABF requirements on collective variables

6.2.2 Parameters for ABF

6.2.3 Output files

6.2.4 Multidimensional free energy surfaces

6.3 Extended-system Adaptive Biasing Force (eABF)

6.3.1 CZAR estimator of the free energy

6.4 Metadynamics

6.4.1 Treatment of the PMF boundaries

6.4.2 Required metadynamics keywords

6.4.3 Output files

6.4.4 Performance optimization

6.4.5 Ensemble-Biased Metadynamics

6.4.6 Well-tempered metadynamics

6.4.7 Multiple-walker metadynamics

6.5 Harmonic restraints

6.5.1 Moving restraints: steered molecular dynamics

6.5.2 Moving restraints: umbrella sampling

6.5.3 Changing force constant

6.6 Computing the work of a changing restraint

6.7 Harmonic wall restraints

6.8 Linear restraints

6.9 Adaptive Linear Bias/Experiment Directed Simulation

6.10 Multidimensional histograms

6.10.1 Defining grids for multidimensional histograms

6.10.2 Output options for multi-dimensional histograms

6.10.3 Histogramming vector variables

6.11 Probability distribution-restraints

7 fix_modify command-line interface: list of commands

7.1 Commands to manage the Colvars module

7.2 Commands to manage individual collective variables

7.3 Commands to manage individual biases

8 Syntax changes from older versions

9 Compilation notes

2 Writing a Colvars configuration: a crash course

3 Enabling and controlling the Colvars module in LAMMPS

3.1 Units in the Colvars module

3.2 LAMMPS keywords

3.3 Using the scripting interface to control the Colvars module

3.3.1 Setting up the Colvars module

3.3.2 Loading and saving the Colvars state and other information

3.3.3 Accessing atomic data

3.3.4 Managing collective variables

3.3.5 Applying and analyzing forces on collective variables

3.3.6 Managing collective variable biases

3.3.7 Loading and saving the state of individual biases

3.4 Configuration syntax used by the Colvars module

3.5 Global keywords

3.6 Input state file

3.6.1 Restarting in LAMMPS.

3.6.2 Changing configuration upon restarting.

3.7 Output files

3.8 File formats

3.8.1 Configuration and state files.

3.8.2 Index (NDX) files

3.8.3 XYZ coordinate files

3.8.4 Grid files: multicolumn text format

3.8.5 Output trajectory files

4 Defining collective variables

4.1 Choosing a function

4.2 Treatment of periodic boundary conditions

4.3 Distances

4.3.1 distance: center-of-mass distance between two groups.

4.3.2 distanceZ: projection of a distance vector on an axis.

4.3.3 distanceXY: modulus of the projection of a distance vector on a plane.

4.3.4 distanceVec: distance vector between two groups.

4.3.5 distanceDir: distance unit vector between two groups.

4.3.6 distanceInv: mean distance between two groups of atoms.

4.4 Angles

4.4.1 angle: angle between three groups.

4.4.2 dipoleAngle: angle between two groups and dipole of a third group.

4.4.3 dihedral: torsional angle between four groups.

4.4.4 polarTheta: polar angle in spherical coordinates.

4.4.5 polarPhi: azimuthal angle in spherical coordinates.

4.5 Contacts

4.5.1 coordNum: coordination number between two groups.

4.5.2 selfCoordNum: coordination number between atoms within a group.

4.5.3 hBond: hydrogen bond between two atoms.

4.6 Collective metrics

4.6.1 rmsd: root mean square displacement (RMSD) from reference positions.

4.6.2 Advanced usage of the rmsd component.

4.6.3 eigenvector: projection of the atomic coordinates on a vector.

4.6.4 gyration: radius of gyration of a group of atoms.

4.6.5 inertia: total moment of inertia of a group of atoms.

4.6.6 dipoleMagnitude: dipole magnitude of a group of atoms.

4.6.7 inertiaZ: total moment of inertia of a group of atoms around a chosen axis.

4.7 Rotations

4.7.1 orientation: orientation from reference coordinates.

4.7.2 orientationAngle: angle of rotation from reference coordinates.

4.7.3 orientationProj: cosine of the angle of rotation from reference coordinates.

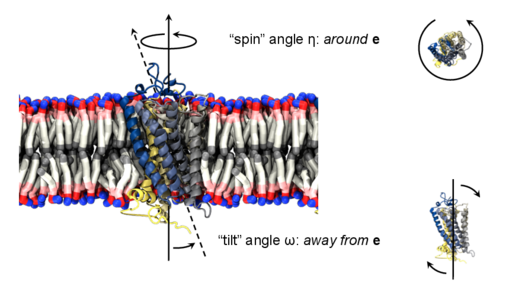

4.7.4 spinAngle: angle of rotation around a given axis.

4.7.5 tilt: cosine of the rotation orthogonal to a given axis.

4.7.6 eulerPhi: Roll angle from references coordinates.

4.7.7 eulerTheta: Pitch angle from references coordinates.

4.7.8 eulerPsi: Yaw angle from references coordinates.

4.8 Raw data: building blocks for custom functions

4.8.1 cartesian: vector of atomic Cartesian coordinates.

4.8.2 distancePairs: set of pairwise distances between two groups.

4.9 Geometric path collective variables

4.9.1 gspath: progress along a path defined in atomic Cartesian coordinate space.

4.9.2 gzpath: distance from a path defined in atomic Cartesian coordinate space.

4.9.3 linearCombination: Helper CV to define a linear combination of other CVs

4.9.4 customColvar: Helper CV to define a mathematical expression as CV from other CVs

4.9.5 gspathCV: progress along a path defined in CV space.

4.9.6 gzpathCV: distance from a path defined in CV space.

4.10 Arithmetic path collective variables

4.10.1 aspathCV: progress along a path defined in CV space.

4.10.2 azpathCV: distance from a path defined in CV space.

4.10.3 aspath: progress along a path defined in atomic Cartesian coordinate space.

4.10.4 azpath: distance from a path defined in atomic Cartesian coordinate space.

4.11 Dense neural network in CV space (MLCV)

4.12 Shared keywords for all components

4.13 Periodic components

4.14 Non-scalar components

4.14.1 Calculating total forces

4.15 Linear and polynomial combinations of components

4.16 Custom functions

4.17 Defining grid parameters for a colvar

4.18 Trajectory output

4.19 Extended Lagrangian

4.20 Multiple time-step variables

4.21 Backward-compatibility

4.22 Statistical analysis

5 Selecting atoms

5.1 Atom selection keywords

5.2 Moving frame of reference.

5.3 Treatment of periodic boundary conditions.

5.4 Performance of a Colvars calculation based on group size.

6 Biasing and analysis methods

6.1 Thermodynamic integration

6.2 Adaptive Biasing Force

6.2.1 ABF requirements on collective variables

6.2.2 Parameters for ABF

6.2.3 Output files

6.2.4 Multidimensional free energy surfaces

6.3 Extended-system Adaptive Biasing Force (eABF)

6.3.1 CZAR estimator of the free energy

6.4 Metadynamics

6.4.1 Treatment of the PMF boundaries

6.4.2 Required metadynamics keywords

6.4.3 Output files

6.4.4 Performance optimization

6.4.5 Ensemble-Biased Metadynamics

6.4.6 Well-tempered metadynamics

6.4.7 Multiple-walker metadynamics

6.5 Harmonic restraints

6.5.1 Moving restraints: steered molecular dynamics

6.5.2 Moving restraints: umbrella sampling

6.5.3 Changing force constant

6.6 Computing the work of a changing restraint

6.7 Harmonic wall restraints

6.8 Linear restraints

6.9 Adaptive Linear Bias/Experiment Directed Simulation

6.10 Multidimensional histograms

6.10.1 Defining grids for multidimensional histograms

6.10.2 Output options for multi-dimensional histograms

6.10.3 Histogramming vector variables

6.11 Probability distribution-restraints

7 fix_modify command-line interface: list of commands

7.1 Commands to manage the Colvars module

7.2 Commands to manage individual collective variables

7.3 Commands to manage individual biases

8 Syntax changes from older versions

9 Compilation notes

In molecular dynamics simulations, it is often useful to reduce the large number of degrees of freedom of a physical system into few parameters whose statistical distributions can be analyzed individually, or used to define biasing potentials to alter the dynamics of the system in a controlled manner. These have been called ‘order parameters', ‘collective variables', ‘(surrogate) reaction coordinates', and many other terms.

Here we use primarily the term ‘collective variable', often shortened to colvar, to indicate any differentiable function of atomic Cartesian coordinates, ${\text{}x\text{}}_{i}$, with $i$ between $1$ and $N$, the total number of atoms:

This manual documents the collective variables module (Colvars), a software that provides an implementation for the functions $\xi \left(\text{}X\text{}\right)$ with a focus on flexibility, robustness and high performance. The module is designed to perform multiple tasks concurrently during or after a simulation, the most common of which are:

- apply restraints or biasing potentials to multiple variables, tailored on the system by choosing from a wide set of basis functions, without limitations on their number or on the number of atoms involved;
- calculate potentials of mean force (PMFs) along any set of variables, using different enhanced sampling methods, such as Adaptive Biasing Force (ABF), metadynamics, steered MD and umbrella sampling; variants of these methods that make use of an ensemble of replicas are supported as well;
- calculate statistical properties of the variables, such as running averages and standard deviations, correlation functions of pairs of variables, and multidimensional histograms: this can be done either at run-time without the need to save very large trajectory files, or after a simulation has been completed (post-processing).

Detailed explanations of the design of the Colvars module are provided in reference [1]. Please cite this reference whenever publishing work that makes use of this module, alongside any other publications for specific features being, according to the usage summary printed when running a Colvars-enabled MD simulation or analysis.

The Colvars configuration is a plain text file or string that defines collective variables, biases, and general parameters of the Colvars module. It is passed to the module using back-end-specific commands documented in section 3.

Example: steering two groups of atoms away from each other. Now let us look at a complete, non-trivial configuration. Suppose that we want to run a steered MD experiment where a small molecule is pulled away from a protein binding site. In Colvars terms, this is done by applying a moving restraint to the distance between the two objects. The configuration will contain two blocks, one defining the distance variable (see section 4 and 4.3.1), and the other the moving harmonic restraint (6.5).

indexFile index.ndx

colvar {

name dist

distance {

group1 { atomNumbersRange 42-55 }

group2 { indexGroup C-alpha_15-30 }

}

}

harmonic {

colvars dist

forceConstant 20.0

centers 4.0 # initial distance

targetCenters 15.0 # final distance

targetNumSteps 500000

}

Reading this input in plain English: the variable here named dist consists in a distance function between the centers of two groups: the ligand (atoms 42 to 55) and the $\alpha $-carbon atoms of residues 15 to 30 in the protein (selected from the index group “C-alpha_15-30"). To the “dist" variable, we apply a harmonic potential of force constant 20 energy unit/length unit${}^{2}$, initially centered around a value of 4 length unit, which will increase to 15 length unit over 500,000 simulation steps.

The atom selection keywords are detailed in section 5. If the selection is too complex to implement only via internal keywords, an external index file may be created following the NDX format used in GROMACS (see 3.8.2) or by using the group2ndx LAMMPS command.

Example: using multiple variables and multiple biasing/analysis methods together. A more complex example configuration is included below, showing how a variable may be constructed by combining multiple existing functions, and how multiple variables or multiple biases may be used concurrently. The colvar indicated below as “$d$" is defined as the difference between two distances (see 4.3): the first distance (${d}_{1}$) is taken between the center of mass of atoms 1 and 2 and that of atoms 3 to 5, the second (${d}_{2}$) between atom 7 and the center of mass of atoms 8 to 10 (see 5). The difference $d={d}_{1}-{d}_{2}$ is obtained by multiplying the two by a coefficient $C=+1$ or $C=-1$, respectively (see 4.15). The colvar called “$c$" is the coordination number calculated between atoms 1 to 10 and atoms 11 to 20. A harmonic restraint (see 6.5) is applied to both $d$ and $c$: to allow using the same force constant $K$, both $d$ and $c$ are scaled by their respective fluctuation widths ${w}_{d}$ and ${w}_{c}$. The values of “$c$" are also recorded throughout the simulation as a joint 2-dimensional histogram (see 6.10).

colvar {

# difference of two distances

name d

width 0.2 # estimated fluctuation width

distance {

componentCoeff 1.0

group1 { atomNumbers 1 2 }

group2 { atomNumbers 3 4 5 }

}

distance {

componentCoeff -1.0

group1 { atomNumbers 7 }

group2 { atomNumbers 8 9 10 }

}

}

colvar {

name c

coordNum {

cutoff 6.0

group1 { atomNumbersRange 1-10 }

group2 { atomNumbersRange 11-20 }

tolerance 1.0e-6

pairListFrequency 1000

}

}

harmonic {

colvars d c

centers 3.0 4.0

forceConstant 5.0

}

histogram {

colvars c

}

Here, we document the syntax of the commands and parameters used to set up and use the Colvars module in LAMMPS [2]. One of these parameters is the configuration file or the configuration text for the module itself, whose syntax is described in 3.4 and in the following sections.

The “internal units" of the Colvars module are the units in which values are expressed in the configuration file, and in which collective variable values, energies, etc. are expressed in the output and colvars trajectory files. Generally the Colvars module uses internally the same units as its back-end MD engine, with the exception of VMD, where different unit sets are supported to allow for easy setup, visualization and analysis of Colvars simulations performed with any simulation engine.

Note that angles are expressed in degrees, and derived quantities such as force constants are based on degrees as well. Some colvar components have default values, expressed in Ångström (Å) in this documentation. They are converted to the current length unit, if different from Å. Atomic coordinates read from XYZ files (and PDB files where applicable) are expected to be expressed in Ångström, no matter what unit system is in use by the back-end (LAMMPS) or the Colvars Module. They are converted internally to the current length unit as needed. Note that force constants in harmonic and harmonicWalls biases (6.5) are rescaled according to the width parameter of colvars, so that they are formally in energy units, although if width is given its default value of 1.0, force constants are effectively expressed in energy unit/(colvar unit)${}^{2}$.

To avoid errors due to reading configuration files written in a different unit system, it can be specified within the input:

- units — Unit system to be used

$[$ string, context: global $]$

A string defining the units to be used internally by Colvars. Supported values are the following LAMMPS unit styles: real (Å, kcal/mol), metal (Å, eV), and electron (Bohr, Hartree). However only the unit system currently in use by LAMMPS is accepted: other values will trigger an error.

To enable a Colvars-based calculation, the following line must be added to the LAMMPS configuration file:

fix Colvars all colvars configfile [keyword value pairs ...]

where the fix ID is here set to the string “Colvars", because there can only be one instance of fix colvars in a LAMMPS run.

The value of the configfile keyword is the name of the configuration file for the Colvars module. You may also provide the lowercase string “none" to create an empty module, and define the configuration via fix_modify (see 3.3).

Other optional keywords for fix colvars are:

- output — Prefix of the output state file

Default: “out" $[$ string, context: Keyword of the fix colvars command $]$

If a value is provided, it is interpreted as the prefix to all output files that will be written by the Colvars module (see 3.7). This includes output state files for checkpointing, as well as accumulated information such as PMFs or histograms and trajectories of the collective variables. Because this information is often useful, a default value is set for this keyword when not provided. However, supplying an empty string suppresses any file output from Colvars to file, except for data saved into the LAMMPS binary restart file. - input — Name or prefix of the input state file (optional)

$[$ string, context: Keyword of the fix colvars command $]$

If a value is provided, it is interpreted as either the name of the input state file, or as the prefix of the file named input.colvars.state. This file contains information needed to continue a previous collective variables-based calculation, including the number of the last computed step (useful for time-dependent biases). The same information is also stored in the binary restart files written by LAMMPS, so this option is generally not needed when the read_restart LAMMPS command is used. - unwrap — Whether to unwrap coordinates passed to the Colvars module (optional)

Default: “yes" $[$ “yes" or “no", context: keyword of the fix colvars command $]$

This keyword controls whether wrapped or unwrapped coordinates are passed to the Colvars module for calculation of the collective variables and of the resulting forces. The default is to use the image flags to reconstruct the absolute atom positions: under this convention, centers of mass and centers of geometry are calculated as a weighted vector sum (see 5.3). Setting this to no will use the current local coordinates that are wrapped back into the simulation cell at each re-neighboring instead. - seed — Seed for the random number generator (optional)

Default: 1966 $[$ positive integer, context: Keyword of the fix colvars command $]$

If defined, the value of this keyword is provided as seed to the random number generator. This is only meaningful when the extendedLangevinDamping keyword is used (see 4.19). - tstat — Thermostating fix (optional)

Default: NULL $[$ string, context: Keyword of the fix colvars command $]$

This keyword provides the ID of an applicable thermostatting fix command. This will be used to provide the Colvars module with the current thermostat target temperature when using a method that needs this information.

All of the above keywords except for the name of the configuration file may also be given (or overridden) using fix_modify, as well as new Colvars configuration files (see 3.3 for more details).

After the first initialization of the Colvars module, the internal state of Colvars objects may be queried or modified in a LAMMPS script (here, “Colvars" is the ID of the fix colvars instance):

fix_modify Colvars $<$method$>$ arg1 arg2 ...

where $<$method$>$ is the name of a specific procedure and arg1, arg2, …are its required and/or optional arguments.

Each fix_modify command may be used in either one of two ways:

- Provide an updated value for the parameters of the fix listed in 3.2: this behavior is similar to that
of several other LAMMPS fix styles, and follows the same argument parsing rules. For example,
multiple keywords can be provided together:
fix_modify Colvars seed 111111 tstat NPT

- Use one of the scripting functions described in this section; the arguments provided as strings are
passed to Colvars. LAMMPS variables referenced by their string representation, “${variable}", will
be expanded immediately. Additionally, variable expansion will also happen within quotes, similar to
what the mdi command provides in a LAMMPS script: this feature makes it possible
to use the values of certain LAMMPS variables in Colvars configuration strings (see
3.3.1).
variable freq index 10000

dump myDump all atom/zstd ${freq} dump.atom.zstd

fix_modify Colvars config "colvarsTrajFrequency ${freq}"

fix_modify can be run on a previously created instance of fix colvars at any time. However, because the fix is not fully initialized until the beginning of the next simulation step, only the variables and biases that were created prior to the most recent run or minimize command will be accessible. This fact is true even if a Colvars configuration file that defines those variables and biases was already given in the LAMMPS script. Should you want to trigger an immediate initialization of the Colvars module, consider running “run 0".

In the remainder of this section, the most frequently used commands of the Colvars scripting interface
are discussed and exemplified. For a full list of scripting commands available, see section 7.

To define new collective variables and/or biases for immediate use in the current session, configuration can be loaded from an external configuration file:

fix_modify Colvars configfile "colvars-file.in"

This can in principle be called at any time, if only flags internal to Colvars are being modified. In practice, when new atoms or any new atomic properties (e.g. total forces) are being requested, initialization steps will be required that are not carried out during a simulation. Therefore, it is generally good practice in a simulation to change the Colvars configuration outside the scope between segments of the same computation.

To load the configuration directly from a string the “config" method may be used:

fix_modify Colvars config "keyword { ... }"

This method is particularly useful to dynamically define the Colvars configuration within a LAMMPS script. For example, when running an ensemble of umbrella sampling simulations in LAMMPS, it may be convenient to use an identical script and define the specific window through environment variables.

In the following example, the environment variable “SLURM_ARRAY_TASK_ID" is set in a Slurm array job to increasing values starting at 0. The value of this variable is used to define the window's numeric index, and the umbrella restraint center beginning at 2.00 for the first window, and increasing in increments of 0.25 for all other windows:

variable window getenv SLURM_ARRAY_TASK_ID

fix_modify Colvars config """

harmonic {

name us_${window}

colvars xi

centers [expr 2.0 + 0.25 * ${window}]

...

}"""

After a configuration is fully defined, the “load" method may be used to load a state file from a previous simulation that contains e.g. data from history-dependent biases), to either continue that simulation or analyze its results:

fix_modify Colvars load "$<$oldjob$>$.colvars.state"

or more simply using the prefix of the state file itself:

fix_modify Colvars load "$<$oldjob$>$"

Note that the Colvars state is already loaded automatically as part of the LAMMPS restart file, when this is read via the LAMMPS read_restart command; the “load" method allows to load a different state file after the fact.

The “save" method, analogous to “load", allows to save all restart information to a state file. This is normally not required during a simulation if colvarsRestartFrequency is defined (either directly or indirectly by the LAMMPS restart frequency). Because not only a state file (used to continue simulations) but also other data files (used to analyze the trajectory) are written, it is generally recommended to call the save method using a prefix, rather than a complete file name:

fix_modify Colvars save "$<$job$>$"

For computational efficiency the Colvars module keeps internal copies of the numeric IDs, masses, charges, positions, and optionally total forces of the atoms requested for a Colvars computation. At each simulation step, up-to-date versions of these properties are copied from the central memory of LAMMPS into the internal memory of the Colvars module. In a post-processing workflow or outside a simulation (e.g. when using VMD), this copy can be carried out as part of the update method:

fix_modify Colvars update

which also performs the (re-)computation of all variables and biases defined in Colvars.

For example, the current sequence of numeric IDs of the atoms processed by Colvars can be obtained as:

fix_modify Colvars getatomids

and their current positions as:

fix_modify Colvars getatompositions

This may prove useful to test the correctness of the coordinates passed to Colvars, particularly in regard to periodic boundary conditions (5.3). There is currently no mechanism to modify the above fields via the scripting interface, but such capability will be added in the future.

While running a simulation, or when setting one up in VMD, it is possible to examine all the forces that were last applied by Colvars to the atoms, or are about to be applied:

fix_modify Colvars getatomappliedforces

where the length and order of this sequence matches that provided by the getatomids method. A simpler way of testing the stability of a Colvars configuration before or during a simulation makes use of aggregated data, such as the energy:

fix_modify Colvars getenergy

the root-mean-square of the Colvars applied forces:

fix_modify Colvars getatomappliedforcesrms

or the maximum norm of the applied forces:

fix_modify Colvars getatomappliedforcesmax

which can be matched to a specific atom via its numeric ID obtained as:

fix_modify Colvars getatomappliedforcesmaxid

See 7.1 for a complete list of scripting commands used to manage atomic data and runtime parameters of the Colvars module.

After one or more collective variables are defined, they can be accessed with the following syntax.

fix_modify Colvars colvar "$<$name$>$" $<$method$>$ arg1 arg2 ...

where “$<$name$>$" is the name of the variable.

For example, to recompute the collective variable “xi" after a change in its parameters, the following command can be used:

fix_modify Colvars colvar "xi" update

This ordinarily is not needed during a simulation run, where all variables are recomputed at every step (along with biasing forces acting on them). However, when analyzing an existing trajectory, e.g. in VMD, a call to update is generally required.

While in all typical cases all configuration of the variables is done with the “config" or “configfile" methods, a limited set of changes can be enacted at runtime using:

fix_modify Colvars colvar "$<$name$>$" modifycvcs arg1 arg2 ...

where each argument is a string passed to the function or functions that are used to compute the variable, and are called colvar components, or CVCs (4.1). For example, a variable “DeltaZ" made of a single “distanceZ" component can be made periodic with a period equal to the unit cell dimension along the $Z$-axis:

fix_modify Colvars colvar "DeltaZ" modifycvcs "period ${Lz}"

Please note that this option is currently limited to changing the values of the polynomial superposition parameters componentCoeff, or of the componentExp to update on the fly, of period, wrapAround or forceNoPBC options for components where it is relevant. Furthermore, because the call above uses an immediate expansion of the variable “${Lz}", its value will not be updated during a constant-pressure simulation.

If the variable is computed using many components, it is possible to selectively turn some of them on or off:

fix_modify Colvars colvar "$<$name$>$" cvcflags $<$flags$>$

where “$<$flags$>$" is a list of 0/1 values, one per component.

Important: None of the changes enacted by the “modifycvcs" or “cvcflags" methods will be saved to state files, and will be lost when restarting a simulation, deleting the corresponding collective variable, or resetting the module with the “reset" method.

As soon as a colvar “xi" and its associated biasing potentials are up to date (i.e. during a MD run, or after the respective “update" methods have been called), the force applied onto the colvar is known and may be accessed through the getappliedforce method:

fix_modify Colvars colvar "xi" getappliedforce

See also the use of the outputAppliedForce option to have this force be saved to file during a simulation.

Aside from the biasing methods already implemented within Colvars (6) this force may be incremented ad hoc:

fix_modify Colvars colvar "xi" addforce $<$force$>$

where “$<$force$>$" is a scalar or a vector (depending on the type of variable “xi"). Although this would offer in principle a way to add custom forces to a variable, fix_modify is executed outside the run or minimize commands, and the given force will be reset during a simulation.

For certain types of variable, the force applied directly on a colvar may be combined with those acting indirectly on it via the interatomic force field, making up the total force. When the outputTotalForce keyword is enabled, or when a biasing method that makes explicit use of the total force is enabled, the total force may be obtained as:

fix_modify Colvars colvar "xi" gettotalforce

Note that not all types of variable support total-force computation, and the value of the total force may not be available immediately within the same simulation step: see the documentation of outputTotalForce for more details.

See 7.2 for a complete list of scripting commands used to manage collective variables.

Because biases depend only upon data internal to the Colvars module (i.e. they do not need atomic coordinates from LAMMPS), it is generally easy to create them or update their configuration at any time. For example, given the most current value of the variable “xi", an already-defined harmonic restraint on it named “h_xi" can be updated as:

fix_modify Colvars bias "h_xi" update

During a running simulation this step is not needed, because an automatic update of each bias is already carried out.

Some types of bias are history-dependent, and the magnitude of their forces depends not only on the values of their corresponding variables, but also on previous simulation history. It is thus useful to load information from a state file that contains information specifically for one bias only, for example:

fix_modify Colvars bias "metadynamics1" load "old.colvars.state"

or alternatively, using the prefix of the file instead of its full name:

fix_modify Colvars bias "metadynamics1" load "old"

A corresponding “save" function is also available:

fix_modify Colvars bias "metadynamics1" save "new"

Please note that the file above must contain only the state information for that particular bias: loading a state file for the whole module is not allowed.

This pair of functions is also used internally by Colvars to implement e.g. multiple-walker metadynamics (6.4.7), but they can be called from a scripted function to implement alternative coupling schemes.

See 7.3 for a complete list of scripting commands used to manage biases.

Configuration for the Colvars module is passed using an external file. Configuration lines follow the format “keyword value" or “keyword { ... }", where the keyword and its value must be separated by one or more space characters. The following formatting rules apply:

- Keywords are case-insensitive; for example, upperBoundary is the same as upperboundary and UPPERBOUNDARY); note that their string values are however still case-sensitive (e.g. names of variables, file names).
- A long value, or a list of multiple values, can be distributed across multiple lines by using curly braces, “{" and “}": the opening brace “{" must occur on the same line as the keyword, following at least one space character; the closing brace “}" may be at any position after that; any keywords following the closing brace on the same line are not valid (they should appear instead on a different line).
- Many keywords are nested, and are only meaningful within the specific context of another keyword; for example, the keyword name is available inside the block of the keyword colvar {...}, but not outside of it; for every keyword documented in the following, the “parent" keyword that defines such context is also indicated.
- If a keyword requiring a boolean value (yes|on|true or no|off|false) is provided without an explicit value, it defaults to ‘yes|on|true'; for example, ‘outputAppliedForce' may be used as shorthand for ‘outputAppliedForce on'.
- The hash character “#" indicates a comment: all text in the same line following this character will be ignored.
- Outside of comments, only ASCII characters are allowed for defining keywords, and the only white-space characters supported are spaces, tabs and newlines: a warning will be printed upon detection of non-ASCII characters in a configuration line, which include both characters that are visibly “special", as well as those with a very similar appearance to ASCII ones (for instance, non-breaking spaces); common ways to identify/remove non-ASCII characters are using the Emacs text editor, or using LC_ALL=C vi.

The following keywords are available in the global context of the Colvars configuration, i.e. they are not nested inside other keywords:

- colvarsTrajFrequency — Colvar value trajectory frequency

Default: 100 $[$ positive integer, context: global $]$

The values of each colvar (and of other related quantities, if requested) are written to the file output.colvars.traj every these many steps throughout the simulation. If the value is 0, such trajectory file is not written. For optimization the output is buffered, and synchronized with the disk only when the restart file is being written. - colvarsRestartFrequency — Colvar module restart frequency

Default: LAMMPS restart frequency when defined $[$ positive integer, context: global $]$

When this value is non-zero, a state file suitable for restarting will be written every these many steps. Additionally, any other output files produced by Colvars are written as well (except the trajectory file, which is written every colvarsTrajFrequency steps). It is generally a good idea to leave this parameter at its default value, unless needed for special cases or to disable automatic writing of output files altogether. If neeed, writing of all output files can still be triggered at any time via the save scripting function. - indexFile — Index file for atom selection (GROMACS “ndx" format)

$[$ UNIX filename, context: global $]$

This option reads an index file (usually with a .ndx extension) as produced by the make_ndx tool of GROMACS. This keyword may be repeated to load multiple index files. A group with the same name may appear multiple times, as long as it contains the same indices in identical order each time: an error is raised otherwise. In LAMMPS, the group2ndx command can be used to generate such file from existing groups. Note that the Colvars module reads the indices of atoms from the index file: therefore, the LAMMPS groups do not need to remain active during the simulation, and could be deleted right after issuing group2ndx. The names of index groups contained in this file can then be used to define atom groups with the indexGroup keyword. Other supported methods to select atoms are described in 5. - smp — Whether SMP parallelism should be used

Default: on $[$ boolean, context: global $]$

If this flag is enabled (default), SMP parallelism over threads will be used to compute variables and biases, provided that this is supported by the LAMMPS build in use.

Several of the sampling methods implemented in Colvars are time- or history-dependent, i.e. they work by accumulating data as a simulation progresses, and use these data to determine their biasing forces. If the simulation engine uses a checkpoint or restart file (as GROMACS and LAMMPS do), any data needed by Colvars are embedded into that file. Otherwise, a dedicated state file can be loaded into Colvars directly.

When a dedicated Colvars state file is used, it may be in either one of two formats:

- Formatted, i.e. “text" format, which takes more space and is slower to to load/save but is also portable across different platforms and even different simulation engines (save for changes in physical units). This format is used by default, unless explicitly requested otherwise.
- Unformatted, i.e. “binary" format, which is both space-efficient and quick to load/save, but requires that the same LAMMPS build was used to write the file and that the Colvars configuration remains the same. This format is supported by Colvars versions starting 2023-09-25. Colvars state files can be written in binary format by setting the environment variable “COLVARS_BINARY_RESTART" to 1.

In either format, the state file contains accumulated data as well as the step number at the end of the run. The step number read from a state file overrides any value that LAMMPS provides, and will be incremented if the simulation proceeds. This means that the step number used internally by Colvars may not always match the step number reported by LAMMPS.

For continuing a Colvars-based simulation, the recommended method is using the standard LAMMPS read_restart command, which reads the Colvars state data from the LAMMPS restart file (in binary format).

`read_restart filename `

Alternatively, restarting from a Colvars-specific state file is also possible by providing the input keyword to the fix colvars command:

fix Colvars all colvars configfile input input_prefix

When the “input" keyword is used, the contents of the file $<$input_prefix$>$.colvar.state override the information read from the LAMMPS restart file. Finally, a state file may also be loaded after initialization through the “fix_modify" command:

fix_modify Colvars input new_input_prefix

In some cases, it is useful to modify the configuration of variables or biases between consecutive runs, for example by adding or removing a restraint. Some special provisions will happen in that case. When a state file is loaded, no information is available about any newly added variable or bias, which will thus remain uninitialized until the first compute step. Conversely, any information that the state file may contain about variables or biases that are no longer defined will be silently ignored. Please note that these checks are performed based only on the names of variables and biases: it is your responsibility to ensure that these names have consistent definitions between runs.

The flexibility just described carries some limitations: namely, it is only supported when reading text-format Colvars state files. Instead, restarting from binary files (such as the LAMMPS restart file) after a configuration change will trigger an error. It is also important to remind that when switching to a different build of LAMMPS, the binary format may change slightly, even if the release version is the same.

To work around the potential issues just described, a text-format Colvars state file should be loaded. This can be achieved by providing an explicit input keyword when initializing the Colvars fix (see 3.2), which will instruct Colvars to use the given filename, instead of the LAMMPS restart file. Furthermore, the fix_modify scripting command allows to load a Colvars file after initialization (3.3.2).

When the output prefix output is defined, the following output files are written during a simulation run:

- A state file, named output.colvars.state, which is written at the end of the specified run. This file is in plain text format by default, or in binary format if the environment variable COLVARS_BINARY_RESTART is set to a non-zero integer. The state file can be used to continue a simulation: unless its contents are embedded in the checkpoint file of the MD engine itself (currently, GROMACS and LAMMPS support this), instructions for loading the Colvars state file will be required in the simulation script (see 3.6).
- If the parameter colvarsRestartFrequency is larger than zero and the restart prefix is defined, a restart file is written every that many steps: this file is fully equivalent to the final state file. The name of this file is restart.colvars.state.
- If the parameter colvarsTrajFrequency is greater than 0 (default value: 100 steps), a trajectory file, named output.colvars.traj, is written during the simulation. Unlike a state file, this file is not needed to restart a simulation, but can be used for post-processing and analysis. The format of this file is described in sec. 3.8.5.
- Additionally, certain features, when enabled, can emit output files with a specific purpose: for example, potentials of mean force (PMFs) can be written to file to be analyzed or plotted. These files are described in the respective sections, but as a general rule they all use names beginning with the output prefix. Like the trajectory file, these additional files are needed only for analyzing a simulation's results, but not to continue it.

This section summarizes the file formats of various files that Colvars may be reading or writing.

Configuration files are text files that are generally read as input by LAMMPS. Starting from version 2017-02-01, changes in newline encodings are handled transparently, i.e. it is possible to typeset a configuration file in Windows (CR-LF newlines) and then use it with Linux or macOS (LF-only newlines).

Formatted state files, although not written manually, follow otherwise the same text format as configuration files. Binary state files can only be read by the Colvars code itself.

For atom selections that cannot be specified only by using internal Colvars keywords, external index files may also be used following the NDX format used in GROMACS:

[ group_1_name ]

i1 i2 i3 i4 ...

... ... iN

[ group_2_name ]

...

where i1 through iN are 1-based indices. Each group name may not contain spaces or tabs: otherwise, a parsing error will be raised.

Multiple index files may be provided to Colvars, each using the keyword indexFile. Two index files may contain groups with the same names, however these must also represent identical atom selections, i.e. the same sequence of indices including order.

Other than with GROMACS, an index group may also be generated from the VMD command-line interface, using the helper function write_index_group provided in the colvartools folder:

source colvartools/write_index_group.tcl

set sel [atomselect top "resname XXX and not hydrogen"]

write_index_group indexfile.ndx $sel "Ligand"

In LAMMPS, NDX files may also be generated from internal groups via the group2ndx command.

XYZ coordinate files are text files with the extension “.xyz". They are read by the Colvars module using an internal reader, and expect the following format:

$N$ | |||

Comment | line | ||

${E}_{1}$ | ${x}_{1}$ | ${y}_{1}$ | ${z}_{1}$ |

${E}_{2}$ | ${x}_{2}$ | ${y}_{2}$ | ${z}_{2}$ |

… | |||

${E}_{N}$ | ${x}_{N}$ | ${y}_{N}$ | ${z}_{N}$ |

where $N$ is the number of atomic coordinates in the file and ${E}_{i}$ is the chemical element of the $i$-th atom. Because ${E}_{i}$ is not used in Colvars, any string that does not contain tabs or spaces is acceptable.

Note: all XYZ coordinates are assumed to be expressed in Å units, regardless of the units currently used by LAMMPS.

An XYZ file may contain either one of the following scenarios:

- The file contains as many coordinates as the atoms that they are being read for: all coordinates will be read from the file following the same order as the atoms appear in the selection generated using the keywords listed in section 5. (Note that the order is guaranteed only if a single type of selection keyword is used one or more times, and not guaranteed when different types of selection keywords are used.)
- The file contains more coordinates than needed, and it is assumed to contain coordinates for the entire system: only coordinates that match the numeric indices of the selected atoms are read, in order of increasing number.

XYZ-file coordinates are read directly by Colvars and stored internally as double-precision floating point numbers.

Many simulation methods and analysis tools write files that contain functions of the collective variables tabulated on a grid (e.g. potentials of mean force or multidimensional histograms) for the purpose of analyzing results. Such files are produced by ABF (6.2), metadynamics (6.4), multidimensional histograms (6.10), as well as any restraint with optional thermodynamic integration support (6.1).

In some cases, these files may also be read as input of a new simulation. Suitable input files for
this purpose are typically generated as output files of previous simulations, or directly by
the user in the specific case of ensemble-biased metadynamics (6.4.5). This section
explains the “multicolumn" format used by these files. For a multidimensional function
$f({\xi}_{1}$,
${\xi}_{2}$,
…$)$ the
multicolumn grid format is defined as follows:

# | ${N}_{cv}$ | |||||

# | $min\left({\xi}_{1}\right)$ | $width\left({\xi}_{1}\right)$ | $npoints\left({\xi}_{1}\right)$ | $periodic\left({\xi}_{1}\right)$ | ||

# | $min\left({\xi}_{2}\right)$ | $width\left({\xi}_{2}\right)$ | $npoints\left({\xi}_{2}\right)$ | $periodic\left({\xi}_{2}\right)$ | ||

# | … | … | … | … | ||

# | $min\left({\xi}_{{N}_{cv}}\right)$ | $width\left({\xi}_{{N}_{cv}}\right)$ | $npoints\left({\xi}_{{N}_{cv}}\right)$ | $periodic\left({\xi}_{{N}_{cv}}\right)$ | ||

${\xi}_{1}^{1}$ | ${\xi}_{2}^{1}$ | … | ${\xi}_{{N}_{cv}}^{1}$ | f(${\xi}_{1}^{1}$, ${\xi}_{2}^{1}$, …, ${\xi}_{{N}_{cv}}^{1}$) | ||

${\xi}_{1}^{1}$ | ${\xi}_{2}^{1}$ | … | ${\xi}_{{N}_{cv}}^{2}$ | f(${\xi}_{1}^{1}$, ${\xi}_{2}^{1}$, …, ${\xi}_{{N}_{cv}}^{2}$) | ||

… | … | … | … | … | ||

Lines beginning with the character “#" are the header of the file. ${N}_{cv}$ is the number of collective variables sampled by the grid. For each variable ${\xi}_{i}$, $min\left({\xi}_{i}\right)$ is the lowest value sampled by the grid (i.e. the left-most boundary of the grid along ${\xi}_{i}$), $width\left({\xi}_{i}\right)$ is the width of each grid step along ${\xi}_{i}$, $npoints\left({\xi}_{i}\right)$ is the number of points and $periodic\left({\xi}_{i}\right)$ is a flag whose value is 1 or 0 depending on whether the grid is periodic along ${\xi}_{i}$. In most situations:

- $min\left({\xi}_{i}\right)$ is given by the lowerBoundary keyword of the variable ${\xi}_{i}$;
- $width\left({\xi}_{i}\right)$ is given by the width keyword;
- $npoints\left({\xi}_{i}\right)$ is calculated from the two above numbers and the upperBoundary keyword;
- $periodic\left({\xi}_{i}\right)$ is set to 1 if and only if ${\xi}_{i}$ is periodic and the grids' boundaries cover its period.

How the grid's boundaries affect the sequence of points depends on how the contents of the file were computed. In many cases, such as histograms and PMFs computed by metadynamics (6.4.5), the values of ${\xi}_{i}$ in the first few columns correspond to the midpoints of the corresponding bins, i.e. ${\xi}_{1}^{1}=min\left({\xi}_{i}\right)+width\left({\xi}_{i}\right)\u22152$. However, there is a slightly different format in PMF files computed by ABF (6.2) or other biases that use thermodynamic integration (6.1). In these cases, it is free-energy gradients that are accumulated on an (npoints)-long grid along each variable $\xi $: after these gradients are integrated, the resulting PMF is discretized on a slightly larger grid with (npoints+1) points along $\xi $ (unless the interval is periodic). Therefore, the grid's outer edges extend by $width\left({\xi}_{i}\right)\u22152$ above and below the specified boundaries, so that for instance $min\left({\xi}_{i}\right)$ in the header appears to be shifted back by $width\left({\xi}_{i}\right)\u22152$ compared to what would be expected. Please keep this difference in mind when comparing PMFs computed by different methods.

After the header, the rest of the file contains values of the tabulated function
$f({\xi}_{1}$,
${\xi}_{2}$,
…${\xi}_{{N}_{cv}})$, one for each line.
The first ${N}_{cv}$ columns
contain values of ${\xi}_{1}$,
${\xi}_{2}$,
…${\xi}_{{N}_{cv}}$ and the last column contains
the value of the function $f$.
Points are sorted in ascending order with the fastest-changing values at the right (“C-style" order). Each sweep of the
right-most variable ${\xi}_{{N}_{cv}}$
is terminated by an empty line. For two dimensional grid files, this allows quick visualization by programs
such as GNUplot.

Example 1: multicolumn text file for a one-dimensional histogram with lowerBoundary = 15, upperBoundary = 48 and width = 0.1.

# | 1 | ||||

# | 15 | 0.1 | 330 | 0 | |

15.05 | 6.14012e-07 | ||||

15.15 | 7.47644e-07 | ||||

… | … | ||||

47.85 | 1.65944e-06 | ||||

47.95 | 1.46712e-06 | ||||

Example 2: multicolumn text file for a two-dimensional histogram of two dihedral angles (periodic interval with 6${}^{\circ}$ bins):

# | 2 | ||||

# | -180.0 | 6.0 | 30 | 1 | |

# | -180.0 | 6.0 | 30 | 1 | |

-177.0 | -177.0 | 8.97117e-06 | |||

-177.0 | -171.0 | 1.53525e-06 | |||

… | … | … | |||

-177.0 | 177.0 | 2.442956-06 | |||

-171.0 | -177.0 | 2.04702e-05 | |||

… | … | … | |||

The Colvars trajectory file (with a suffix .colvars.traj) is a plain text file (scientific notation with 14-digit precision) whose columns represent quantities such as colvar values, applied forces, or individual restraints' energies. Under most scenarios, plotting or analyzing this file is straightforward: for example, the following contains a variable “$A$" and the energy of a restraint “$rA$":

# step A E_rA

0 1.42467449615693e+01 6.30982865292123e+02

100 1.42282559728026e+01 6.20640585041317e+02

…

Occasionally, if the Colvars configuration is changed mid-run certain quantities may be added or removed, changing the column layout. Labels in comment lines can assist in such cases: for example, consider the trajectory above with the addition of a second variable, “$B$", after 10,000 steps:

# step A E_rA

0 1.42467449615693e+01 6.30982865292123e+02

100 1.42282559728026e+01 6.20640585041317e+02

…

# step A B E_rA

10000 1.38136915830229e+01 9.99574098859265e-01 4.11184644791030e+02

10100 1.36437184346326e+01 9.99574091957314e-01 3.37726286543895e+02

Analyzing the above file with standard tools is possible, but laborious: a convenience script is provided for this and related purposes. It may be used either as a command-line tool or as a Python module:

>>> from plot_colvars_traj import Colvars_traj

>>> traj = Colvars_traj('test.colvars.traj')

>>> print(traj['A'].steps, traj['A'].values)

[ 0 100 ... 10000 10100] [14.246745 14.228256 ... 13.813692 13.643718]

>>> print(traj['B'].steps, traj['B'].values)

[10000 10100] [0.999574 0.9995741]

A collective variable is defined by the keyword colvar followed by its configuration options contained within curly braces:

colvar {

name xi

$<$other options$>$

function_name {

$<$parameters$>$

$<$atom selection$>$

}

}

There are multiple ways of defining a variable:

- The simplest and most common way way is using one of the precompiled functions (here called “components"), which are listed in section 4.1. For example, using the keyword rmsd (section 4.6.1) defines the variable as the root mean squared deviation (RMSD) of the selected atoms.
- A new variable may also be constructed as a linear or polynomial combination of the components listed in section 4.1 (see 4.15 for details).
- A user-defined mathematical function of the existing components (see list in section 4.1), or of the atomic coordinates directly (see the cartesian keyword in 4.8.1). The function is defined through the keyword customFunction (see 4.16 for details).

Choosing a component (function) is the only parameter strictly required to define a collective variable. It is also highly recommended to specify a name for the variable:

- name — Name of this colvar

Default: “colvar" + numeric id $[$ string, context: colvar $]$

The name is an unique case-sensitive string which allows the Colvars module to identify this colvar unambiguously; it is also used in the trajectory file to label to the columns corresponding to this colvar.

In this context, the function that computes a colvar is called a component. A component's choice and definition consists of including in the variable's configuration a keyword indicating the type of function (e.g. rmsd), followed by a definition block specifying the atoms involved (see 5) and any additional parameters (cutoffs, “reference" values, …). At least one component must be chosen to define a variable: if none of the keywords listed below is found, an error is raised.

The following components implement functions with a scalar value (i.e. a real number):

- distance: distance between two groups;
- distanceZ: projection of a distance vector on an axis;
- distanceXY: projection of a distance vector on a plane;
- distanceInv: mean distance between two groups of atoms (e.g. NOE-based distance);
- angle: angle between three groups;
- dihedral: torsional (dihedral) angle between four groups;
- dipoleAngle: angle between two groups and dipole of a third group;
- dipoleMagnitude: magnitude of the dipole of a group of atoms;
- polarTheta: polar angle of a group in spherical coordinates;
- polarPhi: azimuthal angle of a group in spherical coordinates;
- eulerPhi: Roll angle of rotation from references coordinates;
- eulerTheta: Pitch angle of rotation from references coordinates;
- eulerPsi: Yaw angle of rotation from references coordinates;
- coordNum: coordination number between two groups;
- selfCoordNum: coordination number of atoms within a group;
- hBond: hydrogen bond between two atoms;
- rmsd: root mean square deviation (RMSD) from a set of reference coordinates;
- eigenvector: projection of the atomic coordinates on a vector;
- orientationAngle: angle of the best-fit rotation from a set of reference coordinates;
- orientationProj: cosine of orientationProj;
- spinAngle: projection orthogonal to an axis of the best-fit rotation from a set of reference coordinates;
- tilt: projection on an axis of the best-fit rotation from a set of reference coordinates;
- gyration: radius of gyration of a group of atoms;
- inertia: moment of inertia of a group of atoms;
- inertiaZ: moment of inertia of a group of atoms around a chosen axis;

Some components do not return scalar, but vector values:

- distanceVec: distance vector between two groups (length: 3);
- distanceDir: unit vector parallel to distanceVec (length: 3);
- cartesian: vector of atomic Cartesian coordinates (length: $N$ times the number of Cartesian components requested, X, Y or Z);
- distancePairs: vector of mutual distances (length: ${N}_{1}\times {N}_{2}$);
- orientation: best-fit rotation, expressed as a unit quaternion (length: 4).

The types of components used in a colvar (scalar or not) determine the properties of that colvar, and particularly which biasing or analysis methods can be applied.

What if “X" is not listed? If a function type is not available on this list, it may be possible to define it as a polynomial superposition of existing ones (see 4.15), a custom function (see 4.16).

In the rest of this section, all available component types are listed, along with their physical units and their ranges of values, if limited. Such ranges are often used to define automatically default sampling intervals, for example by setting the parameters lowerBoundary and upperBoundary in the parent colvar.

For each type of component, the available configurations keywords are listed: when two components share certain keywords, the second component references to the documentation of the first one that uses that keyword. The very few keywords that are available for all types of components are listed in a separate section 4.12.

In all colvar components described below, the following rules apply concerning periodic boundary conditions (PBCs):

- Distance vectors between two coordinates ${d}_{i,j}=\left({x}_{1}-{x}_{2}\right)$, are calculated following the minimum-image convention by default, unless forceNoPBC is enabled. (${x}_{1}$ and ${x}_{2}$ may be either individual atomic coordinates, or centers of mass of two groups.)
- For all other functions of individual atomic coordinates, $f\left({x}_{1},{x}_{2},\dots \⁡\right)$, it is assumed that all atoms that are part of the same group are in the same periodic unit cell (see 5.3).

- forceNoPBC — Use absolute rather than minimum-image distances?

Default: no $[$ boolean, context: any component $]$

If this keyword is set to yes, PBCs will be ignored when calculating this component. This is only useful in a limited number of special cases, e.g. to describe the distance between remote points of a single macromolecule, which cannot be split across periodic cell boundaries, and for which the minimum-image distance might give the wrong result because of a relatively small periodic cell.

The distance {...} block defines a distance component between the two atom groups, group1 and group2.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — First group of atoms

$[$ Atom group, context: distance $]$

First group of atoms. - group2 — analogous to group1
- oneSiteTotalForce — Measure total force on group 1 only?

Default: no $[$ boolean, context: angle, dipoleAngle, dihedral $]$

If this is set to yes, the total force is measured along a vector field (see equation (20) in section 6.2) that only involves atoms of group1. This option is only useful for ABF, or custom biases that compute total forces. See section 6.2 for details. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The value returned is a positive number (in length unit), ranging from $0$ to the largest possible interatomic distance within the chosen boundary conditions (with PBCs, the minimum image convention is used unless the forceNoPBC option is set).

The distanceZ {...} block defines a distance projection component, which can be seen as measuring the distance between two groups projected onto an axis, or the position of a group along such an axis. The axis can be defined using either one reference group and a constant vector, or dynamically based on two reference groups. One of the groups can be set to a dummy atom to allow the use of an absolute Cartesian coordinate.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- main — Main group of atoms

$[$ Atom group, context: distanceZ $]$

Group of atoms whose position $\text{}r\text{}$ is measured. - ref — Reference group of atoms

$[$ Atom group, context: distanceZ $]$

Reference group of atoms. The position of its center of mass is noted ${\text{}r\text{}}_{1}$ below. - ref2 — Secondary reference group

Default: none $[$ Atom group, context: distanceZ $]$

Optional group of reference atoms, whose position ${\text{}r\text{}}_{2}$ can be used to define a dynamic projection axis: $\text{}e\text{}={(\parallel {\text{}r\text{}}_{2}-{\text{}r\text{}}_{1}\parallel )}^{-1}\times ({\text{}r\text{}}_{2}-{\text{}r\text{}}_{1})$. In this case, the origin is ${\text{}r\text{}}_{m}=1\u22152({\text{}r\text{}}_{1}+{\text{}r\text{}}_{2})$, and the value of the component is $\text{}e\text{}\cdot (\text{}r\text{}-{\text{}r\text{}}_{m})$. - axis — Projection axis

Default: (0.0, 0.0, 1.0) $[$ (x, y, z) triplet, context: distanceZ $]$

This vector will be normalized to define a projection axis $\text{}e\text{}$ for the distance vector $\text{}r\text{}-{\text{}r\text{}}_{1}$ joining the centers of groups ref and main. The value of the component is then $\text{}e\text{}\cdot (\text{}r\text{}-{\text{}r\text{}}_{1})$. The vector should be written as three components separated by commas and enclosed in parentheses. - oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component returns a number (in length unit) whose range is determined by the chosen boundary conditions. For instance, if the $z$ axis is used in a simulation with periodic boundaries, the returned value ranges between $-{b}_{z}\u22152$ and ${b}_{z}\u22152$, where ${b}_{z}$ is the box length along $z$ (this behavior is disabled if forceNoPBC is set).

The distanceXY {...} block defines a distance projected on a plane, and accepts the same keywords as the component distanceZ, i.e. main, ref, either ref2 or axis, and oneSiteTotalForce. It returns the norm of the projection of the distance vector between main and ref onto the plane orthogonal to the axis. The axis is defined using the axis parameter or as the vector joining ref and ref2 (see distanceZ above).

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- main — same definition as main (distanceZ component)
- ref — same definition as ref (distanceZ component)
- ref2 — same definition as ref2 (distanceZ component)
- axis — same definition as axis (distanceZ component)
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The distanceVec component computes the 3-dimensional vector joining the centers of mass of group1 and group2. Its values are therefore multi-dimensional and are subject to the restrictions listed in 4.14. Moreover, when computing differences between two different values of a distanceVec variable the minimum-image convention is assumed (unless forceNoPBC is enabled).

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The distanceDir {...} block defines a distance unit vector component, which accepts the same keywords as the component distance: group1, group2, and forceNoPBC. It returns a 3-dimensional unit vector $d=({d}_{x},{d}_{y},{d}_{z})$, with $\left|d\right|=1$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The distanceInv {...} block defines a generalized mean distance between two groups of atoms 1 and 2, where each distance is taken to the power $-n$:

$${d}_{1,2}^{\left[n\right]}\phantom{\rule{0.28em}{0ex}}=\phantom{\rule{0.28em}{0ex}}{\left(\frac{1}{{N}_{1}{N}_{2}}\sum _{i,j}{d}_{ij}^{-n}\right)}^{-1\u2215n}$$ | (2) |

where ${d}_{ij}$ is the distance between atoms $i$ and $j$ in groups 1 and 2 respectively, and $n$ is an even integer.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- exponent — Exponent $n$
in equation 2

Default: 6 $[$ positive even integer, context: distanceInv $]$

Defines the exponent to which the individual distances are elevated before averaging. The default value of 6 is useful for example to applying restraints based on NOE-measured distances. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component returns a number ranging from $0$ to the largest possible distance within the chosen boundary conditions.

The angle {...} block defines an angle, and contains the three blocks group1, group2 and group3, defining the three groups. It returns an angle (in degrees) within the interval $[0:180]$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- group3 — analogous to group1
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The dipoleAngle {...} block defines an angle, and contains the three blocks group1, group2 and group3, defining the three groups, being group1 the group where dipole is calculated. It returns an angle (in degrees) within the interval $[0:180]$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- group3 — analogous to group1
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The dihedral {...} block defines a torsional angle, and contains the blocks group1, group2, group3 and group4, defining the four groups. It returns an angle (in degrees) within the interval $[-180:180]$. The Colvars module calculates all the distances between two angles taking into account periodicity. For instance, reference values for restraints or range boundaries can be defined by using any real number of choice.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- group3 — analogous to group1
- group4 — analogous to group1
- oneSiteTotalForce — same definition as oneSiteTotalForce (distance component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The polarTheta {...} block defines the polar angle in spherical coordinates, for the center of mass of a group of atoms described by the block atoms. It returns an angle (in degrees) within the interval $[0:180]$. To obtain spherical coordinates in a frame of reference tied to another group of atoms, use the fittingGroup (5.2) option within the atoms block. An example is provided in file examples/11_polar_angles.in of the Colvars public repository.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — Group of atoms defining this function

$[$ Atom group, context: polarPhi $]$

Defines the group of atoms for the COM of which the angle should be calculated. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The polarPhi {...} block defines the azimuthal angle in spherical coordinates, for the center of mass of a group of atoms described by the block atoms. It returns an angle (in degrees) within the interval $[-180:180]$. The Colvars module calculates all the distances between two angles taking into account periodicity. For instance, reference values for restraints or range boundaries can be defined by using any real number of choice. To obtain spherical coordinates in a frame of reference tied to another group of atoms, use the fittingGroup (5.2) option within the atoms block. An example is provided in file examples/11_polar_angles.in of the Colvars public repository.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — Group of atoms defining this function

$[$ Atom group, context: polarPhi $]$

Defines the group of atoms for the COM of which the angle should be calculated. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The coordNum {...} block defines a coordination number (or number of contacts), which calculates the function $(1-{(d\u2215{d}_{0})}^{n})\u2215(1-{(d\u2215{d}_{0})}^{m})$, where ${d}_{0}$ is the “cutoff" distance, and $n$ and $m$ are exponents that can control its long range behavior and stiffness [3]. This function is summed over all pairs of atoms in group1 and group2:

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- cutoff — “Interaction" distance (length unit)

Default: 4.0 Å $[$ positive decimal, context: coordNum $]$

This number defines the switching distance to define an interatomic contact: for $d\ll {d}_{0}$, the switching function $(1-{(d\u2215{d}_{0})}^{n})\u2215(1-{(d\u2215{d}_{0})}^{m})$ is close to 1, at $d={d}_{0}$ it has a value of $n\u2215m$ ($1\u22152$ with the default $n$ and $m$), and at $d\gg {d}_{0}$ it goes to zero approximately like ${d}^{m-n}$. Hence, for a proper behavior, $m$ must be larger than $n$. - cutoff3 — Reference distance vector (length unit)

Default: (4.0, 4.0, 4.0) Å $[$ “(x, y, z)" triplet of positive decimals, context: coordNum $]$

The three components of this vector define three different cutoffs ${d}_{0}$ for each direction. This option is mutually exclusive with cutoff. - expNumer — Numerator exponent

Default: 6 $[$ positive even integer, context: coordNum $]$

This number defines the $n$ exponent for the switching function. - expDenom — Denominator exponent

Default: 12 $[$ positive even integer, context: coordNum $]$

This number defines the $m$ exponent for the switching function. - group2CenterOnly — Use only group2's center of mass

Default: off $[$ boolean, context: coordNum $]$

If this option is on, only contacts between each atoms in group1 and the center of mass of group2 are calculated (by default, the sum extends over all pairs of atoms in group1 and group2). If group2 is a dummyAtom, this option is set to yes by default. - tolerance — Pairlist control

Default: 0.0 $[$ decimal, context: coordNum $]$

This controls the pair list feature, dictating the minimum value for each summation element in Eq. 3 such that the pair that contributed the summation element is included in subsequent simulation timesteps until the next pai r list recalculation. For most applications, this value should be small (eg. 0.001) to avoid missing important contributions to the overall sum. Higher values will improve performance by reducing the number of pairs that contribute to the sum. Values above 1 will exclude all possible pair interactions. Similarly, values below 0 will never exclude a pair from consideration. To ensure continuous forces, Eq. 3 is further modified by subtracting the tolerance and then rescaling so that each pair covers the range $\left[0,1\right]$. - pairListFrequency — Pairlist regeneration frequency

Default: 100 $[$ positive integer, context: coordNum $]$

This controls the pairlist feature, dictating how many steps are taken between regenerating pair lists if the tolerance is greater than 0. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component returns a dimensionless number, which ranges from approximately 0 (all interatomic distances are much larger than the cutoff) to ${N}_{group1}\times {N}_{group2}$ (all distances are less than the cutoff), or ${N}_{group1}$ if group2CenterOnly is used. For performance reasons, at least one of group1 and group2 should be of limited size or group2CenterOnly should be used: the cost of the loop over all pairs grows as ${N}_{group1}\times {N}_{group2}$. Setting $tolerance>0$ ameliorates this to some degree, although every pair is still checked to regenerate the pair list.

The selfCoordNum {...} block defines a coordination number similarly to the component coordNum, but the function is summed over atom pairs within group1:

The keywords accepted by selfCoordNum are a subset of those accepted by coordNum, namely group1 (here defining all of the atoms to be considered), cutoff, expNumer, and expDenom.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (coordNum component)
- cutoff — same definition as cutoff (coordNum component)
- cutoff3 — same definition as cutoff3 (coordNum component)
- expNumer — same definition as expNumer (coordNum component)
- expDenom — same definition as expDenom (coordNum component)
- tolerance — same definition as tolerance (coordNum component)
- pairListFrequency — same definition as pairListFrequency (coordNum component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component returns a dimensionless number, which ranges from approximately 0 (all interatomic distances much larger than the cutoff) to ${N}_{group1}\times ({N}_{group1}-1)\u22152$ (all distances within the cutoff). For performance reasons, group1 should be of limited size, because the cost of the loop over all pairs grows as ${N}_{group1}^{2}$.

The hBond {...} block defines a hydrogen bond, implemented as a coordination number (eq. 3) between the donor and the acceptor atoms. Therefore, it accepts the same options cutoff (with a different default value of 3.3 Å), expNumer (with a default value of 6) and expDenom (with a default value of 8). Unlike coordNum, it requires two atom numbers, acceptor and donor, to be defined. It returns a dimensionless number, with values between 0 (acceptor and donor far outside the cutoff distance) and 1 (acceptor and donor much closer than the cutoff).

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- acceptor — Number of the acceptor atom

$[$ positive integer, context: hBond $]$

Number that uses the same convention as atomNumbers. - donor — analogous to acceptor
- cutoff — same definition as cutoff (coordNum component)

Note: default value is 3.3 Å. - expNumer — same definition as expNumer (coordNum component)

Note: default value is 6. - expDenom — same definition as expDenom (coordNum component)

Note: default value is 8. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The block rmsd {...} defines the root mean square replacement (RMSD) of a group of atoms with respect to a reference structure. For each set of coordinates $\left\{{x}_{1}\right(t),{x}_{2}(t),\dots \⁡{x}_{N}(t\left)\right\}$, the colvar component rmsd calculates the optimal rotation ${U}^{\left\{{x}_{i}\right(t\left)\right\}\to \left\{{x}_{i}^{\left(ref\right)}\right\}}$ that best superimposes the coordinates $\left\{{x}_{i}\right(t\left)\right\}$ onto a set of reference coordinates $\left\{{x}_{i}^{\left(ref\right)}\right\}$. Both the current and the reference coordinates are centered on their centers of geometry, ${x}_{cog}\left(t\right)$ and ${x}_{cog}^{\left(ref\right)}$. The root mean square displacement is then defined as:

The optimal rotation ${U}^{\left\{{x}_{i}\right(t\left)\right\}\to \left\{{x}_{i}^{\left(ref\right)}\right\}}$ is calculated within the formalism developed in reference [4], which guarantees a continuous dependence of ${U}^{\left\{{x}_{i}\right(t\left)\right\}\to \left\{{x}_{i}^{\left(ref\right)}\right\}}$ with respect to $\left\{{x}_{i}\right(t\left)\right\}$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — Group of atoms defining this function

$[$ Atom group, context: rmsd $]$

Defines the group of atoms of which the RMSD should be calculated. Optimal fit options (such as refPositions and rotateToReference) should typically NOT be set within this block. Exceptions to this rule are the special cases discussed in the Advanced usage paragraph below. - refPositions — Reference coordinates

$[$ space-separated list of (x, y, z) triplets, context: rmsd $]$

This option (mutually exclusive with refPositionsFile) sets the reference coordinates for RMSD calculation, and uses these to compute the roto-translational fit. See the equivalent option refPositions within the atom group definition for details on acceptable formats and other features. - refPositionsFile — Reference coordinates file

$[$ UNIX filename, context: rmsd $]$

This option (mutually exclusive with refPositions) sets the reference coordinates for RMSD calculation, and uses these to compute the roto-translational fit. See the equivalent option refPositionsFile within the atom group definition for details on acceptable file formats and other features. - atomPermutation — Alternate ordering of atoms for RMSD computation

$[$ List of atom numbers, context: rmsd $]$

If defined, this parameter defines a re-ordering (permutation) of the 1-based atom numbers that can be used to compute the RMSD, typically due to molecular symmetry. This parameter can be specified multiple times, each one defining a new permutation: the returned RMSD value is the minimum over the set of permutations. For example, if the atoms making up the group are 6, 7, 8, 9, and atoms 7, 8, and 9 are invariant by circular permutation (as the hydrogens in a CH3 group), a symmetry-adapted RMSD would be obtained by adding:

atomPermutation 6 8 9 7

atomPermutation 6 9 7 8

This will result in these 2 atom orders being considered in addition to the order used when defining the atom group. Note that this does not affect the least-squares roto-translational fit. Therefore, this feature is mostly useful when using custom fitting parameters within the atom group, such as fittingGroup, or when fitting is disabled altogether. For details, see reference [5]. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component returns a positive real number (in length unit).

In the standard usage as described above, the rmsd component calculates a minimum RMSD, that is, current coordinates are optimally fitted onto the same reference coordinates that are used to compute the RMSD value. The fit itself is handled by the atom group object, whose parameters are automatically set by the rmsd component. For very specific applications, however, it may be useful to control the fitting process separately from the definition of the reference coordinates, to evaluate various types of non-minimal RMSD values. This can be achieved by setting the related options (refPositions, etc.) explicitly in the atom group block. This allows for the following non-standard cases:

- applying the optimal translation, but no rotation (rotateToReference off), to bias or restrain the shape and orientation, but not the position of the atom group;
- applying the optimal rotation, but no translation (centerToReference off), to bias or restrain the shape and position, but not the orientation of the atom group;
- disabling the application of optimal roto-translations, which lets the RMSD component describe the deviation of atoms from fixed positions in the laboratory frame: this allows for custom positional restraints within the Colvars module;
- fitting the atomic positions to different reference coordinates than those used in the RMSD calculation itself (by specifying refPositions or refPositionsFile within the atom group as well as within the rmsd block);
- applying the optimal rotation and/or translation from a separate atom group, defined through fittingGroup: the RMSD then reflects the deviation from reference coordinates in a separate, moving reference frame (see example in the section on fittingGroup).

The block eigenvector {...} defines the projection of the coordinates of a group of atoms (or more precisely, their deviations from the reference coordinates) onto a vector in ${\mathbb{R}}^{3n}$, where $n$ is the number of atoms in the group. The computed quantity is the total projection:

where, as in the rmsd component, $U$ is the optimal rotation matrix, ${x}_{cog}\left(t\right)$ and ${x}_{cog}^{\left(ref\right)}$ are the centers of geometry of the current and reference positions respectively, and ${v}_{i}$ are the components of the vector for each atom. Example choices for $\left({v}_{i}\right)$ are an eigenvector of the covariance matrix (essential mode), or a normal mode of the system. It is assumed that ${\sum \⁡}_{i}{v}_{i}=0$: otherwise, the Colvars module centers the ${v}_{i}$ automatically when reading them from the configuration.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- vector — Vector components

$[$ space-separated list of (x, y, z) triplets, context: eigenvector $]$

This option (mutually exclusive with vectorFile) sets the values of the vector components. - vectorFile — file containing vector components

$[$ UNIX filename, context: eigenvector $]$

This option (mutually exclusive with vector) sets the name of an XYZ (3.8.3) coordinate file containing the vector components. Note: Reading data from a coordinate file may entail an automatic unit conversion if the length unit currently used by the MD engine is not Å. If this is not the desired behavior, this can be remedied using the normalizeVector option described below. - normalizeVector — Normalize the vector components when reading them?

Default: off $[$ boolean, context: eigenvector $]$

If this flag is activated, the norm of the vector $\left|v\right|=\sqrt{{\sum \⁡}_{i}{\left|{v}_{i}\right|}^{2}}$ is set equal to 1 by automatically rescaling all the components ${v}_{i}$; alternatively, the value of $\left|v\right|$ is printed. - differenceVector — The $3n$-dimensional
vector is the difference between vector and refPositions

Default: off $[$ boolean, context: eigenvector $]$

If this option is on, the numbers provided by vector are interpreted as another set of positions, ${x}_{i}^{\prime}$: the vector ${v}_{i}$ is then defined as ${v}_{i}=\left({x}_{i}^{\prime}-{x}_{i}^{\left(ref\right)}\right)$. This allows to conveniently define a colvar $\xi $ as a projection on the linear transformation between two sets of positions, “A" and “B". If this flag is on, the vector is normalized so that $\xi =0$ when the atoms are at the set of positions “A" and $\xi =1$ at the set of positions “B". Setting normalizeVector on overrides this behavior. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The block gyration {...} defines the parameters for calculating the radius of gyration of a group of atomic positions $\left\{{x}_{1}\right(t),{x}_{2}(t),\dots \⁡{x}_{N}(t\left)\right\}$ with respect to their center of geometry, ${x}_{cog}\left(t\right)$:

$${R}_{gyr}\phantom{\rule{0.28em}{0ex}}=\phantom{\rule{0.28em}{0ex}}\sqrt{\frac{1}{N}\sum _{i=1}^{N}{\left|{x}_{i}\left(t\right)-{x}_{cog}\left(t\right)\right|}^{2}}$$ | (7) |

This component must contain one atoms {...} block to define the atom group, and returns a positive number, expressed in length unit.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The block inertia {...} defines the parameters for calculating the total moment of inertia of a group of atomic positions $\left\{{x}_{1}\right(t),{x}_{2}(t),\dots \⁡{x}_{N}(t\left)\right\}$ with respect to their center of geometry, ${x}_{cog}\left(t\right)$:

$$I\phantom{\rule{0.28em}{0ex}}=\phantom{\rule{0.28em}{0ex}}\sum _{i=1}^{N}{\left|{x}_{i}\left(t\right)-{x}_{cog}\left(t\right)\right|}^{2}$$ | (8) |

Note that all atomic masses are set to 1 for simplicity. This component must contain one atoms {...} block to define the atom group, and returns a positive number, expressed in length unit${}^{2}$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The dipoleMagnitude {...} block defines the dipole magnitude of a group of atoms (norm of the dipole moment's vector), being atoms the group where dipole magnitude is calculated. It returns the magnitude in elementary charge $e$ times length unit.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The block inertiaZ {...} defines the parameters for calculating the component along the axis $e$ of the moment of inertia of a group of atomic positions $\left\{{x}_{1}\right(t),{x}_{2}(t),\dots \⁡{x}_{N}(t\left)\right\}$ with respect to their center of geometry, ${x}_{cog}\left(t\right)$:

$${I}_{e}\phantom{\rule{0.28em}{0ex}}=\phantom{\rule{0.28em}{0ex}}\sum _{i=1}^{N}{\left(\left({x}_{i}\left(t\right)-{x}_{cog}\left(t\right)\right)\cdot e\right)}^{2}$$ | (9) |

Note that all atomic masses are set to 1 for simplicity. This component must contain one atoms {...} block to define the atom group, and returns a positive number, expressed in length unit${}^{2}$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- axis — Projection axis

Default: (0.0, 0.0, 1.0) $[$ (x, y, z) triplet, context: inertiaZ $]$

The three components of this vector define (when normalized) the projection axis $e$. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The variables discussed in this section quantify the rotations of macromolecules (or other quasi-rigid objects) from a given set of reference coordinates to the current coordinates. Such rotations are computed following the same method used for best-fit RMSDs (see rmsd and fittingGroup). The underlying mathematical formalism is described in reference [4], and the implementation in reference [1].

The first of the functions described is the orientation, which describes the full rotation as a unit quaternion $q=({q}_{0},{q}_{1},{q}_{2},{q}_{3})$, i.e. 4 numbers with one constraint (3 degrees of freedom). The quaternion $q$ is one of only two representations that are both complete and accurate, the other being a $3\times 3$ unit matrix with 3 independent parameters. Although $q$ is used internally in the Colvars module for features such as the rmsd function and the fittingGroup option, its direct use as a collective variable is more difficult, and mostly limited to fixed or moving restraints.

The two functions orientationAngle and orientationProj, with the latter being the cosine of the former, represent the amplitude of the full rotation described by $q$, regardless of the direction of its axis. As one-dimensional scalar variables, both orientationAngle and orientationProj are a much reduced simplification of the full rotation. However, they can be used in a variety of methods including both restraints and PMF computations.

A slightly more complete parametrization is achieved by decomposing the full rotation into the two parameters, tilt and spinAngle. These quantify the amplitudes of two independent sub-rotations away from a certain axis $e$, and around the same axis $e$, respectively. The axis $e$ is chosen by the user, and is by default the Z axis: under that choice, tilt is equivalent to the sine of the Euler “pitch" angle $\mathit{\theta}$, and spinAngle to the sum of the other two angles, $(\varphi +\psi )$. This parameterization is mathematically well defined for almost all full rotations, including small ones when the current coordinates are almost completely aligned with the reference ones. However, a mathematical singularity prevents using the spinAngle function near configurations where the value of tilt tilt is -1 (i.e. a -180${}^{\circ}$ rotation around an axis orthogonal to $e$). For these reasons, tilt and spinAngle are useful when the allowed rotations are known to have approximately the same axis, and differ only in the magnitude of the corresponding angle. In this use case, spinAngle measures the angle of the sub-rotation around the chosen axis $e$, whereas tilt measures the dot product between $e$ and the actual axis of the full rotation.

Lastly, the traditional Euler angles are also available as the functions eulerPhi, eulerTheta and eulerPsi. Altogether, these are sufficient to represent all three degrees of freedom of a full rotation. However, they also suffer from the potential “gimbal lock" problem, which emerges whenever $\mathit{\theta}\simeq \pm 9{0}^{\circ}$, which includes also the case where the full rotation is small. Under such conditions, the angles $\varphi $ and $\psi $ are both ill-defined and cannot be used as collective variables. For these reasons, it is highly recommended that Euler angles are used only in simulations where their range of applicability is known ahead of time, and excludes configurations where $\mathit{\theta}\simeq \pm 9{0}^{\circ}$ altogether.

The block orientation {...} returns the same optimal rotation used in the rmsd component to superimpose the coordinates $\left\{{x}_{i}\right(t\left)\right\}$ onto a set of reference coordinates $\left\{{x}_{i}^{\left(ref\right)}\right\}$. Such component returns a four dimensional vector $q=({q}_{0},{q}_{1},{q}_{2},{q}_{3})$, with ${\sum \⁡}_{i}{q}_{i}^{2}=1$; this quaternion expresses the optimal rotation $\left\{{x}_{i}\right(t\left)\right\}\to \left\{{x}_{i}^{\left(ref\right)}\right\}$ according to the formalism in reference [4]. The quaternion $({q}_{0},{q}_{1},{q}_{2},{q}_{3})$ can also be written as $\left(\mathrm{cos}\⁡(\mathit{\theta}\u22152),\phantom{\rule{0.17em}{0ex}}\mathrm{sin}\⁡(\mathit{\theta}\u22152)u\right)$, where $\mathit{\theta}$ is the angle and $u$ the normalized axis of rotation; for example, a rotation of 90${}^{\circ}$ around the $z$ axis is expressed as “(0.707, 0.0, 0.0, 0.707)". The script quaternion2rmatrix.tcl provides Tcl functions for converting to and from a $4\times 4$ rotation matrix in a format suitable for usage in VMD.

As for the component rmsd, the available options are atoms, refPositionsFile and refPositions.

Note: refPositions and refPositionsFile define the set of positions from which the optimal rotation is calculated, but this rotation is not applied to the coordinates of the atoms involved: it is used instead to define the variable itself.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- closestToQuaternion — Reference rotation

Default: (1.0, 0.0, 0.0, 0.0) (“null" rotation) $[$ “(q0, q1, q2, q3)" quadruplet, context: orientation $]$

Between the two equivalent quaternions $({q}_{0},{q}_{1},{q}_{2},{q}_{3})$ and $(-{q}_{0},-{q}_{1},-{q}_{2},-{q}_{3})$, the closer to (1.0, 0.0, 0.0, 0.0) is chosen. This simplifies the visualization of the colvar trajectory when sampled values are a smaller subset of all possible rotations. Note: this only affects the output, never the dynamics. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

Tip: stopping the rotation of a protein. To stop the rotation of an elongated macromolecule in solution (and use an anisotropic box to save water molecules), it is possible to define a colvar with an orientation component, and restrain it through the harmonic bias around the identity rotation, (1.0, 0.0, 0.0, 0.0). Only the overall orientation of the macromolecule is affected, and not its internal degrees of freedom. The user should also take care that the macromolecule is composed by a single chain, or disable wrapAll otherwise.

The block orientationAngle {...} accepts the same base options as the component orientation: atoms, refPositions, refPositionsFile. The returned value is the angle of rotation $\mathit{\theta}$ between the current and the reference positions. This angle is expressed in degrees within the range [0${}^{\circ}$:180${}^{\circ}$].

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The block orientationProj {...} accepts the same base options as the component orientation: atoms, refPositions, refPositionsFile. The returned value is the cosine of the angle of rotation $\mathit{\theta}$ between the current and the reference positions. The range of values is [-1:1].

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The complete rotation described by orientation can optionally be decomposed into two sub-rotations: one is a “spin" rotation around e, and the other a “tilt" rotation around an axis orthogonal to e. The component spinAngle measures the angle of the “spin" sub-rotation around e.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- axis — Special rotation axis

Default: (0.0, 0.0, 1.0) $[$ (x, y, z) triplet, context: tilt $]$

The three components of this vector define (when normalized) the special rotation axis used to calculate the tilt and spinAngle components. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The component spinAngle returns an angle (in degrees) within the periodic interval $[-180:180]$.

Note: the value of spinAngle is a continuous function almost everywhere, with the exception of configurations with the corresponding “tilt" angle equal to 180${}^{\circ}$ (i.e. the tilt component is equal to $-1$): in those cases, spinAngle is undefined. If such configurations are expected, consider defining a tilt colvar using the same axis e, and restraining it with a lower wall away from $-1$.

The component tilt measures the cosine of the angle of the “tilt" sub-rotation, which combined with the “spin" sub-rotation provides the complete rotation of a group of atoms. The cosine of the tilt angle rather than the tilt angle itself is implemented, because the latter is unevenly distributed even for an isotropic system: consider as an analogy the angle $\mathit{\theta}$ in the spherical coordinate system. The component tilt relies on the same options as spinAngle, including the definition of the axis e. The values of tilt are real numbers in the interval $[-1:1]$: the value $1$ represents an orientation fully parallel to e (tilt angle = 0${}^{\circ}$), and the value $-1$ represents an anti-parallel orientation.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- axis — same definition as axis (spinAngle component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

Assuming the axes of the original frame are denoted as x, y, z and the axes of the rotated frame as X, Y, Z, the line of nodes, N, can be defined as the intersection of the plane xy and XY. The axis perpendicular to N and z is defined as P. In this case, as illustrated in the figure below, the complete rotation described by orientation can optionally be decomposed into three Euler angles:

- the “roll" angle $\varphi $, i.e. the rotation angle from the x axis to the N axis;
- the “pitch" angle $\mathit{\theta}$, i.e. the rotation angle from the P axis to the Z axis, and
- the “yaw" angle $\psi $, i.e. the rotation angle from the N axis to the X axis.

Although Euler angles are more straightforward to use than quaternions, they are also potentially
subject to the “gimbal lock" problem:

https://en.wikipedia.org/wiki/Gimbal_lock

which arises whenever $\mathit{\theta}\simeq \pm 9{0}^{\circ}$,
including the common case when the simulated coordinates are near the reference coordinates.
Therefore, a safe use of Euler angles as collective variables requires the use of restraints to avoid
such singularities, such as done in reference [6] and in the protein-ligand binding NAMD
tutorial.

The eulerPhi component accepts exactly the same options as orientation, and measures the rotation angle from the x axis to the N axis. This angle is expressed in degrees within the periodic range $[-18{0}^{\circ}:18{0}^{\circ}]$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component accepts exactly the same options as orientation, and measures the rotation angle from the P axis to the Z axis. This angle is expressed in degrees within the range $[-9{0}^{\circ}:9{0}^{\circ}]$.

Warning: When this angle reaches $-9{0}^{\circ}$ or $9{0}^{\circ}$, the definition of orientation by euler angles suffers from the gimbal lock issue. You may need to apply a restraint to keep eulerTheta away from the singularities.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component accepts exactly the same options as orientation, and measures the rotation angle from the N axis to the X axis. This angle is expressed in degrees within the periodic range $[-18{0}^{\circ}:18{0}^{\circ}]$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — same definition as atoms (rmsd component)
- refPositions — same definition as refPositions (rmsd component)
- refPositionsFile — same definition as refPositionsFile (rmsd component)
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The cartesian {...} block defines a component returning a flat vector containing the Cartesian coordinates of all participating atoms, in the order $({x}_{1},{y}_{1},{z}_{1},\cdots \phantom{\rule{0.17em}{0ex}},{x}_{n},{y}_{n},{z}_{n})$.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — Group of atoms

$[$ Atom group, context: cartesian $]$

Defines the atoms whose coordinates make up the value of the component. If rotateToReference, centerToReference, or centerToOrigin are defined, coordinates are evaluated within the moving frame of reference. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The distancePairs {...} block defines a ${N}_{1}\times {N}_{2}$-dimensional variable that includes all mutual distances between the atoms of two groups.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- group1 — same definition as group1 (distance component)
- group2 — analogous to group1
- forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This component returns a ${N}_{1}\times {N}_{2}$-dimensional vector of numbers, each ranging from $0$ to the largest possible distance within the chosen boundary conditions.

The geometric path collective variables define the progress along a path, $s$, and the distance from the path, $z$. These CVs are proposed by Leines and Ensing[7] , which differ from that[8] proposed by Branduardi et al., and utilize a set of geometric algorithms. The path is defined as a series of frames in the atomic Cartesian coordinate space or the CV space. $s$ and $z$ are computed as

$$s=\frac{m}{M}\pm \frac{1}{2M}\left(\frac{\sqrt{{({v}_{1}\cdot {v}_{3})}^{2}-\left|{v}_{3}{|}^{2}\right(|{v}_{1}{|}^{2}-|{v}_{2}{|}^{2})}-({v}_{1}\cdot {v}_{3})}{|{v}_{3}{|}^{2}}-1\right)$$ | (10) |

where ${v}_{1}={s}_{m}-z$ is the vector connecting the current position to the closest frame, ${v}_{2}=z-{s}_{m-1}$ is the vector connecting the second closest frame to the current position, ${v}_{3}={s}_{m+1}-{s}_{m}$ is the vector connecting the closest frame to the third closest frame, and ${v}_{4}={s}_{m}-{s}_{m-1}$ is the vector connecting the second closest frame to the closest frame. $m$ and $M$ are the current index of the closest frame and the total number of frames, respectively. If the current position is on the left of the closest reference frame, the $\pm $ in $s$ turns to the positive sign. Otherwise it turns to the negative sign.

The equations above assume: (i) the frames are equidistant and (ii) the second and the third closest frames are neighbouring to the closest frame. When these assumptions are not satisfied, this set of path CV should be used carefully.

In the gspath {...} and the gzpath {...} block all vectors, namely $z$ and ${s}_{k}$ are defined in atomic Cartesian coordinate space. More specifically, $z=\left[{r}_{1},\cdots \phantom{\rule{0.17em}{0ex}},{r}_{n}\right]$, where ${r}_{i}$ is the $i$-th atom specified in the atoms block. ${s}_{k}=\left[{r}_{k,1},\cdots \phantom{\rule{0.17em}{0ex}},{r}_{k,n}\right]$, where ${r}_{k,i}$ means the $i$-th atom of the $k$-th reference frame.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — Group of atoms

$[$ Atom group, context: gspath and gzpath $]$

Defines the atoms whose coordinates make up the value of the component. - refPositionsCol — PDB column containing atom flags

$[$ O, B, X, Y, or Z, context: gspath and gzpath $]$

If refPositionsFileN is a PDB file that contains all the atoms in the topology, this option may be provided to set which PDB field is used to flag the reference coordinates for atoms. - refPositionsFileN — File containing the reference positions for fitting

$[$ UNIX filename, context: gspath and gzpath $]$

The path is defined by multiple refPositionsFiles which are similiar to refPositionsFile in the rmsd CV. If your path consists of $10$ nodes, you can list the coordinate file (in PDB or XYZ format) from refPositionsFile1 to refPositionsFile10. - useSecondClosestFrame — Define ${s}_{m-1}$
as the second closest frame?

Default: on $[$ boolean, context: gspath and gzpath $]$

The definition assumes the second closest frame is neighbouring to the closest frame. This is not always true especially when the path is crooked. If this option is set to on (default), ${s}_{m-1}$ is defined as the second closest frame. If this option is set to off, ${s}_{m-1}$ is defined as the left or right neighbouring frame of the closest frame. - useThirdClosestFrame — Define ${s}_{m+1}$
as the third closest frame?

Default: off $[$ boolean, context: gspath and gzpath $]$

The definition assumes the third closest frame is neighbouring to the closest frame. This is not always true especially when the path is crooked. If this option is set to on, ${s}_{m+1}$ is defined as the third closest frame. If this option is set to off (default), ${s}_{m+1}$ is defined as the left or right neighbouring frame of the closest frame. - fittingAtoms — The atoms that are used for alignment

$[$ Group of atoms, context: gspath and gzpath $]$

Before calculating ${v}_{1}$, ${v}_{2}$, ${v}_{3}$ and ${v}_{4}$, the current frame need to be aligned to the corresponding reference frames. This option specifies which atoms are used to do alignment. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- useZsquare — Compute ${z}^{2}$
instead of $z$

Default: off $[$ boolean, context: gzpath $]$

$z$ is not differentiable when it is zero. This implementation workarounds it by setting the derivative of $z$ to zero when $z=0$. Another workaround is set this option to on, which computes ${z}^{2}$ instead of $z$, and then ${z}^{2}$ is differentiable when it is zero. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The usage of gzpath and gspath is illustrated below:

colvar {

# Progress along the path

name gs

# The path is defined by 5 reference frames (from string-00.pdb to string-04.pdb)

# Use atomic coordinate from atoms 1, 2 and 3 to compute the path

gspath {

atoms {atomnumbers { 1 2 3 }}

refPositionsFile1 string-00.pdb

refPositionsFile2 string-01.pdb

refPositionsFile3 string-02.pdb

refPositionsFile4 string-03.pdb

refPositionsFile5 string-04.pdb

}

}

colvar {

# Distance from the path

name gz

# The path is defined by 5 reference frames (from string-00.pdb to string-04.pdb)

# Use atomic coordinate from atoms 1, 2 and 3 to compute the path

gzpath {

atoms {atomnumbers { 1 2 3 }}

refPositionsFile1 string-00.pdb

refPositionsFile2 string-01.pdb

refPositionsFile3 string-02.pdb

refPositionsFile4 string-03.pdb

refPositionsFile5 string-04.pdb

}

}

This is a helper CV which can be defined as a linear combination of other CVs. It maybe useful when you want to define the gspathCV {...} and the gzpathCV {...} as combinations of other CVs. Total forces (required by ABF) of this CV are not available.

This is a helper CV which can be defined as a mathematical expression (see 4.16) of other CVs by using customFunction. Currently only the scalar type of customFunction is supported. If customFunction is not provided, this component falls back to linearCombination. It maybe useful when you want to define the gspathCV {...}, the gzpathCV {...} and NeuralNetwork {...} as combinations of other CVs. Total forces (required by ABF) of this CV are not available.

In the gspathCV {...} and the gzpathCV {...} block all vectors, namely $z$ and ${s}_{k}$ are defined in CV space. More specifically, $z=\left[{\xi}_{1},\cdots \phantom{\rule{0.17em}{0ex}},{\xi}_{n}\right]$, where ${\xi}_{i}$ is the $i$-th CV. ${s}_{k}=\left[{\xi}_{k,1},\cdots \phantom{\rule{0.17em}{0ex}},{\xi}_{k,n}\right]$, where ${\xi}_{k,i}$ means the $i$-th CV of the $k$-th reference frame. It should be note that these two CVs requires the pathFile option, which specifies a path file. Each line in the path file contains a set of space-seperated CV value of the reference frame. The sequence of reference frames matches the sequence of the lines.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- useSecondClosestFrame — Define ${s}_{m-1}$
as the second closest frame?

Default: on $[$ boolean, context: gspathCV and gzpathCV $]$

The definition assumes the second closest frame is neighbouring to the closest frame. This is not always true especially when the path is crooked. If this option is set to on (default), ${s}_{m-1}$ is defined as the second closest frame. If this option is set to off, ${s}_{m-1}$ is defined as the left or right neighbouring frame of the closest frame. - useThirdClosestFrame — Define ${s}_{m+1}$
as the third closest frame?

Default: off $[$ boolean, context: gspathCV and gzpathCV $]$

The definition assumes the third closest frame is neighbouring to the closest frame. This is not always true especially when the path is crooked. If this option is set to on, ${s}_{m+1}$ is defined as the third closest frame. If this option is set to off (default), ${s}_{m+1}$ is defined as the left or right neighbouring frame of the closest frame. - pathFile — The file name of the path file.

$[$ UNIX filename, context: gspathCV and gzpathCV $]$

Defines the nodes or images that constitutes the path in CV space. The CVs of an image are listed in a line of pathFile using space-seperated format. Lines from top to button in pathFile corresponds images from initial to last. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- useZsquare — Compute ${z}^{2}$
instead of $z$

Default: off $[$ boolean, context: gzpathCV $]$

$z$ is not differentiable when it is zero. This implementation workarounds it by setting the derivative of $z$ to zero when $z=0$. Another workaround is set this option to on, which computes ${z}^{2}$ instead of $z$, and then ${z}^{2}$ is differentiable when it is zero. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

The usage of gzpathCV and gspathCV is illustrated below:

colvar {

# Progress along the path

name gs

# Path defined by the CV space of two dihedral angles

gspathCV {

pathFile ./path.txt

dihedral {

name 001

group1 {atomNumbers {5}}

group2 {atomNumbers {7}}

group3 {atomNumbers {9}}

group4 {atomNumbers {15}}

}

dihedral {

name 002

group1 {atomNumbers {7}}

group2 {atomNumbers {9}}

group3 {atomNumbers {15}}

group4 {atomNumbers {17}}

}

}

}

colvar {

# Distance from the path

name gz

gzpathCV {

pathFile ./path.txt

dihedral {

name 001

group1 {atomNumbers {5}}

group2 {atomNumbers {7}}

group3 {atomNumbers {9}}

group4 {atomNumbers {15}}

}

dihedral {

name 002

group1 {atomNumbers {7}}

group2 {atomNumbers {9}}

group3 {atomNumbers {15}}

group4 {atomNumbers {17}}

}

}

}

The arithmetic path collective variable in CV space uses a similar formula as the one proposed by Branduardi[8] et al., except that it computes $s$ and $z$ in CV space instead of RMSDs in Cartesian space. Moreover, this implementation allows different coefficients for each CV components as described in [9]. Assuming a path is composed of $N$ reference frames and defined in an $M$-dimensional CV space, then the equations of $s$ and $z$ of the path are

$$z=-\frac{1}{\lambda}\mathrm{ln}\⁡\left(\sum _{i=0}^{N-1}\mathrm{exp}\⁡\left(-\lambda \sum _{j=1}^{M}{c}_{j}^{2}{\left({x}_{j}-{x}_{i,j}\right)}^{2}\right)\right)$$ | (13) |

where ${c}_{j}$ is the coefficient(weight) of the $j$-th CV, ${x}_{i,j}$ is the value of $j$-th CV of $i$-th reference frame and ${x}_{j}$ is the value of $j$-th CV of current frame. $\lambda $ is a parameter to smooth the variation of $s$ and $z$. It should be noted that the index $i$ ranges from $0$ to $N-1$, and the definition of $s$ is normalized by $1\u2215(N-1)$. Consequently, the scope of $s$ is $[0:1]$.

This colvar component computes the $s$ variable.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- weights — Coefficients of the collective variables

Default: {1.0 ...} $[$ space-separated numbers in a {...} block, context: aspathCV and azpathCV $]$

Define the coefficients. The $j$-th value in the {...} block corresponds the ${c}_{j}$ in the equations. - lambda — Smoothness of the variation of $s$
and $z$

Default: inverse of the mean square displacements of successive reference frames $[$ decimal, context: aspathCV and azpathCV $]$

The value of $\lambda $ in the equations. - pathFile — The file name of the path file.

$[$ UNIX filename, context: aspathCV and azpathCV $]$

Defines the nodes or images that constitutes the path in CV space. The CVs of an image are listed in a line of pathFile using space-separated format. Lines from top to button in pathFile corresponds images from initial to last. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

This colvar component computes the $z$ variable. Options are the same as in 4.10.1.

The usage of azpathCV and aspathCV is illustrated below:

colvar {

# Progress along the path

name as

# Path defined by the CV space of two dihedral angles

aspathCV {

pathFile ./path.txt

weights {1.0 1.0}

lambda 0.005

dihedral {

name 001

group1 {atomNumbers {5}}

group2 {atomNumbers {7}}

group3 {atomNumbers {9}}

group4 {atomNumbers {15}}

}

dihedral {

name 002

group1 {atomNumbers {7}}

group2 {atomNumbers {9}}

group3 {atomNumbers {15}}

group4 {atomNumbers {17}}

}

}

}

colvar {

# Distance from the path

name az

azpathCV {

pathFile ./path.txt

weights {1.0 1.0}

lambda 0.005

dihedral {

name 001

group1 {atomNumbers {5}}

group2 {atomNumbers {7}}

group3 {atomNumbers {9}}

group4 {atomNumbers {15}}

}

dihedral {

name 002

group1 {atomNumbers {7}}

group2 {atomNumbers {9}}

group3 {atomNumbers {15}}

group4 {atomNumbers {17}}

}

}

}

This CV computes a special case of Eq. 12, where ${x}_{j}$ is the $j$-th atomic position, ${x}_{i,j}$ is the $j$-th atomic position of the $i$-th reference frame. The subtraction ${x}_{j}-{x}_{i,j}$ is actually calculated as ${x}_{j}-{R}_{i}{x}_{i,j}$, where ${R}_{i}$ is a 3x3 rotation matrix that minimizes the RMSD between the current atomic positions of simulation and the $i$-th reference frame. Bold ${x}_{j}$ is used since an atomic position is a vector.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- atoms — Group of atoms

$[$ Atom group, context: aspath and azpath $]$

Defines the atoms whose coordinates make up the value of the component. - refPositionsCol — PDB column containing atom flags

$[$ O, B, X, Y, or Z, context: aspath and azpath $]$

If refPositionsFileN is a PDB file that contains all the atoms in the topology, this option may be provided to set which PDB field is used to flag the reference coordinates for atoms. - refPositionsFileN — File containing the reference positions for fitting

$[$ UNIX filename, context: aspath and azpath $]$

The path is defined by multiple refPositionsFiles which are similiar to refPositionsFile in the rmsd CV. If your path consists of $10$ nodes, you can list the coordinate file (in PDB or XYZ format) from refPositionsFile1 to refPositionsFile10. - fittingAtoms — The atoms that are used for alignment

$[$ Group of atoms, context: aspath and azpath $]$

Before calculating ${v}_{1}$, ${v}_{2}$, ${v}_{3}$ and ${v}_{4}$, the current frame need to be aligned to the corresponding reference frames. This option specifies which atoms are used to do alignment. - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

Similar to aspath, this CV computes a special case of Eq. 13, and shares the same options as aspath.

The usage of azpath and aspath is illustrated below:

colvar {

# Progress along the path

name as

# The path is defined by 5 reference frames (from string-00.pdb to string-04.pdb)

# Use atomic coordinate from atoms 1, 2 and 3 to compute the path

aspath {

atoms {atomnumbers { 1 2 3 }}

refPositionsFile1 string-00.pdb

refPositionsFile2 string-01.pdb

refPositionsFile3 string-02.pdb

refPositionsFile4 string-03.pdb

refPositionsFile5 string-04.pdb

}

}

colvar {

# Distance from the path

name az

# The path is defined by 5 reference frames (from string-00.pdb to string-04.pdb)

# Use atomic coordinate from atoms 1, 2 and 3 to compute the path

azpath {

atoms {atomnumbers { 1 2 3 }}

refPositionsFile1 string-00.pdb

refPositionsFile2 string-01.pdb

refPositionsFile3 string-02.pdb

refPositionsFile4 string-03.pdb

refPositionsFile5 string-04.pdb

}

}

This colvar component computes a non-linear combination of other scalar colvar components, where the transformation is defined by a dense neural network.[10] The network can be optimized using any framework, and its parameters are provided to Colvars in plain text files, as detailed below. An example Python script to export the parameters of a TensorFlow model is provided in colvartools/extract_weights_biases.py in the Colvars source tree.

The output of the $j$-th node of a $k$-th layer that has ${N}_{k}$ nodes is computed by

$${y}_{k,j}={f}_{k}\left(\sum _{i=1}^{{N}_{k-1}}{w}_{(k,j),(k-1,i)}{y}_{k-1,i}+{b}_{k,j}\right),$$ | (14) |

where ${f}_{k}$ is the activation function of the $k$-th layer, ${w}_{(k,j),(k-1,i)}$ is the weight of $j$-th node with respect to the $i$-th output of previous layer, and ${b}_{k,j}$ is the bias of $j$-th node of $k$-th layer.

List of keywords (see also 4.2, 4.12, 4.13 and 4.15 for additional options):

- output_component — The $j$-th
node of the output or the last layer

$[$ integer starting from 0, context: NeuralNetwork $]$

The value of this option specifies the output node to be used as the value of this CV. - layer$i$_WeightsFile
— The weights from layer $i-1$
to layer $i$

$[$ UNIX filename, context: NeuralNetwork $]$

The letter $i$ in this option needs to be replaced with the indexing number starting from 1, for example, layer1_WeightsFile and layer2_WeightsFile. The value of this option specifies a plain text file containing the weights from layer $i-1$ to layer $i$. In the file, the number at $k$-th column and $l$-th row represents the weight from node $k$ at layer $i-1$ to node $l$ at layer $i$. - layer$i$_BiasesFile
— The biases from layer $i-1$
to layer $i$

$[$ UNIX filename, context: NeuralNetwork $]$

The letter $i$ in this option needs to be replaced with the indexing number starting from 1, for example, layer1_BiasesFile and layer2_BiasesFile. The value of this option specifies a plain text file containing the weights of layer $i$. The file should have only one column, where the number at $l$-th row represents the bias of node $l$ from layer $i-1$ to layer $i$. - layer$i$_activation
— The activation function from layer $i-1$
to layer $i$

$[$ tanh, sigmoid, linear, relu, lrelu100, elu , context: NeuralNetwork $]$

The letter $i$ in this option needs to be replaced with the indexing number starting from 1, for example, layer1_activation and layer2_activation. The activation function from layer $i-1$ to layer $i$. Available choices are tanh, sigmoid, linear (identity), relu, lrelu100 (a leaky rely with coefficients $1{0}^{-2}$ and 1), and elu (with coefficient 1). - layer$i$_custom_activation
— An alternative custom expression as the activation function from layer $i-1$
to layer $i$

$[$ string, context: NeuralNetwork $]$

Mathematical expression to define the activation function from layer $i-1$ to layer $i$. The input value must be written as x. For example, the ELU activation function can be expressed as select(step(x), alpha*(exp(x)-1), x). For details of the expression syntax, see customFunction. This option is mutually exclusive with colvar|NeuralNetwork|layeri_activation - forceNoPBC — Use absolute rather than minimum-image distances? (see description)

Default: no

An example of configuration using NeuralNetwork is shown below:

colvar {

# Define a neural network with 2 layers

# The inputs are two torsion angles

# and the first node at the output layer is used as the final CV

name nn_output_1

NeuralNetwork {

output_component 0

layer1_WeightsFile dense_1_weights.txt

layer1_BiasesFile dense_1_biases.txt

layer1_activation tanh

layer2_WeightsFile dense_2_weights.txt

layer2_BiasesFile dense_2_biases.txt

layer2_activation tanh

# The component coefficient is used for normalization

componentCoeff 180.0

dihedral {

name 001

# normalization factor 1.0/180.0

componentCoeff 0.00555555555555555556

group1 {atomNumbers {5}}

group2 {atomNumbers {7}}

group3 {atomNumbers {9}}

group4 {atomNumbers {15}}

}

dihedral {

name 002

# normalization factor 1.0/180.0

componentCoeff 0.00555555555555555556

group1 {atomNumbers {7}}

group2 {atomNumbers {9}}

group3 {atomNumbers {15}}

group4 {atomNumbers {17}}

}

}

}

The following options can be used for any of the above colvar components in order to obtain a polynomial combination.

- name — Name of this component

Default: type of component + numeric id $[$ string, context: any component $]$

The name is an unique case-sensitive string which allows the Colvars module to identify this component. It also defines the variable name representing the component's value in a customFunction expression. - scalable — Attempt to calculate this component in parallel?

Default: on, if available $[$ boolean, context: any component $]$

If set to on (default), the Colvars module will attempt to calculate this component in parallel to reduce overhead. Whether this option is available depends on the type of component: currently supported are distance, distanceZ, distanceXY, distanceVec, distanceDir, angle and dihedral. This flag influences computational cost, but does not affect numerical results: therefore, it should only be turned off for debugging or testing purposes.

Certain components, such as dihedral or dihedral, compute angles that lie in a periodic interval between $-18{0}^{\circ}$ and $18{0}^{\circ}$. When computing pairwise distances between values of those angles (e.g. for the sake of computing restraint potentials, or sampling PMFs), periodicity is taken into account by following the minimum-image convention.

Additionally, several other components, such as distanceZ, support optional periodicity if this is provided in the configuration.

The following keywords can be used within periodic components, or within custom variables (4.16)).

- period — Period of the component

Default: 0.0, unless otherwise stated $[$ positive decimal, context: components with optional periodicity $]$

Setting this number enables the treatment of as a periodic component: by default, distanceZ is not considered periodic. The keyword is supported, but irrelevant within dihedral or spinAngle, because their period is always 360 degrees. - wrapAround — Center of the wrapping interval for periodic variables

Default: 0.0 $[$ decimal, context: periodic components $]$

By default, values of the periodic components are centered around zero, ranging from $-P\u22152$ to $P\u22152$, where $P$ is the period. Setting this number centers the interval around this value. This can be useful for convenience of output, or to set the walls for a harmonicWalls in an order that would not otherwise be allowed.

Note: using linear/polynomial combinations of periodic components (see 4.15), or other custom or scripted function may invalidate the periodicity. Use such combinations carefully: estimate the range of possible values of each component in a given simulation, and make use of wrapAround to limit this problem whenever possible.

When one of the following components are used, the defined colvar returns a value that is not a scalar number:

- distanceVec: 3-dimensional vector of the distance between two groups;
- distanceDir: 3-dimensional unit vector of the distance between two groups;
- orientation: 4-dimensional unit quaternion representing the best-fit rotation from a set of reference coordinates.

The distance between two 3-dimensional unit vectors is computed as the angle between them. The distance between two quaternions is computed as the angle between the two 4-dimensional unit vectors: because the orientation represented by $q$ is the same as the one represented by $-q$, distances between two quaternions are computed considering the closest of the two symmetric images.

Non-scalar components carry the following restrictions:

- Calculation of total forces (outputTotalForce option) is currently not implemented.
- Each colvar can only contain one non-scalar component.
- Binning on a grid (abf, histogram and metadynamics with useGrids enabled) is currently not implemented for colvars based on such components.

Note: while these restrictions apply to individual colvars based on non-scalar components, no limit is set to the number of scalar colvars. To compute multi-dimensional histograms and PMFs, use sets of scalar colvars of arbitrary size.

In addition to the restrictions due to the type of value computed (scalar or non-scalar), a final restriction can arise when calculating total force (outputTotalForce option or application of a abf bias). total forces are available currently only for the following components: distance, distanceZ, distanceXY, angle, dihedral, rmsd, eigenvector and gyration.

To extend the set of possible definitions of colvars $\xi \left(r\right)$, multiple components ${q}_{i}\left(r\right)$ can be summed with the formula:

$$\xi \left(r\right)=\sum _{i}{c}_{i}{\left[{q}_{i}\right(r\left)\right]}^{{n}_{i}}$$ | (15) |

where each component appears with a unique coefficient ${c}_{i}$ (1.0 by default) the positive integer exponent ${n}_{i}$ (1 by default).

Any set of components can be combined within a colvar, provided that they return the same type of values (scalar, unit vector, vector, or quaternion). By default, the colvar is the sum of its components. Linear or polynomial combinations (following equation (15)) can be obtained by setting the following parameters, which are common to all components:

- componentCoeff — Coefficient of this component in the colvar

Default: 1.0 $[$ decimal, context: any component $]$

Defines the coefficient by which this component is multiplied (after being raised to componentExp) before being added to the sum. - componentExp — Exponent of this component in the colvar

Default: 1 $[$ integer, context: any component $]$

Defines the power at which the value of this component is raised before being added to the sum. When this exponent is different than 1 (non-linear sum), total forces and the Jacobian force are not available, making the colvar unsuitable for ABF calculations (eABF remains possible).

Example: To define the average of a colvar across different parts of the system, simply define within the same colvar block a series of components of the same type (applied to different atom groups), and assign to each component a componentCoeff of $1\u2215N$.

Collective variables may be defined by specifying a custom function of multiple components, i.e. an analytical expression that is more general than the linear combinations described in 4.15. Such expression is parsed and calculated by Lepton, the lightweight expression parser written by Peter Eastman (https://simtk.org/projects/lepton) that produces efficient evaluation routines for both the expression and its derivatives. Although Lepton is generally available in most applications and builds where Colvars is included, it is best to check section 9 to confirm.

- customFunction — Compute colvar as a custom function of its components

$[$ string, context: colvar $]$

Mathematical expression to define the colvar as a closed-form function of its colvar components. See below for the detailed syntax of Lepton expressions. Multiple mentions of this keyword can be used to define a vector variable (as in the example below). - customFunctionType — Type of value returned by the custom function

Default: scalar $[$ string, context: colvar $]$

With this flag, the user may specify whether the colvar is a scalar or one of the following vector types: vector3 (a 3D vector), unit_vector3 (a normalized 3D vector), or unit_quaternion (a normalized quaternion), or vector. Note that the scalar and vector cases are not necessary, as they are detected automatically.

The expression may use the collective variable components as variables, referred to by their user-defined name. Scalar elements of vector components may be accessed by appending a 1-based index to their name, as in the example below. When implementing generic functions of Cartesian coordinates rather than functions of existing components, the cartesian component may be particularly useful. A scalar-valued custom variable may be manually defined as periodic by providing the keyword period, and the optional keyword wrapAround, with the same meaning as in periodic components (see 4.13 for details). A vector variable may be defined by specifying the customFunction parameter several times: each expression defines one scalar element of the vector colvar, as in this example:

colvar {

name custom

# A 2-dimensional vector function of a scalar x and a 3-vector r

customFunction cos(x) * (r1 + r2 + r3)

customFunction sqrt(r1 * r2)

distance {

name x

group1 { atomNumbers 1 }

group2 { atomNumbers 50 }

}

distanceVec {

name r

group1 { atomNumbers 10 11 12 }

group2 { atomNumbers 20 21 22 }

}

}

Numeric constants may be given in either decimal or exponential form (e.g. 3.12e-2). An expression
may be followed by definitions for intermediate values that appear in the expression, separated by
semicolons. For example, the expression:

a^2 + a*b + b^2; a = a1 + a2; b = b1 + b2

is exactly equivalent to:

(a1 + a2)^2 + (a1 + a2) * (b1 + b2) + (b1 + b2)^2.

The definition of an intermediate value may itself involve other intermediate values. All uses of a value
must appear before that value's definition.

Lepton supports the usual arithmetic operators +, -, *, /, and ^ (power), as well as the following functions:

sqrt | Square root |

exp | Exponential |

log | Natural logarithm |

erf | Error function |

erfc | Complementary error function |

sin | Sine (angle in radians) |

cos | Cosine (angle in radians) |

sec | Secant (angle in radians) |

csc | Cosecant (angle in radians) |

tan | Tangent (angle in radians) |

cot | Cotangent (angle in radians) |

asin | Inverse sine (in radians) |

acos | Inverse cosine (in radians) |

atan | Inverse tangent (in radians) |

atan2 | Two-argument inverse tangent (in radians) |

sinh | Hyperbolic sine |

cosh | Hyperbolic cosine |

tanh | Hyperbolic tangent |

abs | Absolute value |

floor | Floor |

ceil | Ceiling |

min | Minimum of two values |

max | Maximum of two values |

delta | $delta\left(x\right)=1$ if $x=0$, 0 otherwise |

step | $step\left(x\right)=0$ if $x<0$, 1 if $x>=0$ |

select | $select(x,y,z)=z$ if $x=0$, $y$ otherwise |

Many algorithms require the definition of two boundaries and a bin width for each colvar, which are necessary to compute discrete “states" for a collective variable's otherwise continuous values. The following keywords define these parameters for a specific variable, and will be used by all bias that refer to that variable unless otherwise specified.

- lowerBoundary — Lower boundary of the colvar

Default: natural boundary of the function $[$ decimal, context: colvar $]$

Defines the lowest end of the interval of “relevant" values for the variable. This number can be, for example, a true physical boundary imposed by the choice of function (e.g. the distance function is always larger than zero): if this is the case, and only one function is used to define the variable, the default value of this number is set to the lowest end of the range of values of that function, if available (see Section 4.1). Alternatively, this value may be provided by the user, to represent for example the left-most point of a PMF calculation along this variable. In the latter case, it is the user's responsibility to either (a) ensure the variable does not go significantly beyond the boundary (for example by adding a harmonicWalls restraint, 6.7), or (b) instruct the code that this is a true physical boundary by setting hardLowerBoundary. - upperBoundary — Upper boundary of the colvar

Default: natural boundary of the function $[$ decimal, context: colvar $]$

Similarly to lowerBoundary, defines the highest of the “relevant" values of the variable. - width — grid spacing, or unit of the variable

Default: 1.0 $[$ positive decimal, context: colvar $]$

This number defines the width of a discrete “state" for a collective variable, and is used by the many biasing methods to achieve different purposes. Histograms (6.10), ABF (6.2) and metadynamics (6.4) all use this number as the initial choice for the grid spacing along this variable. As a typical rule of thumb, width should be no larger than the standard deviation of the colvar in an unbiased simulation (to characterize a local free-energy minimum with at least two points).Further, many restraints such as harmonic potentials (6.5), harmonic walls (6.7) and linear restraints (6.8) also use this parameter to define the expected fluctuations of the colvar, allowing to express the force constant in terms of this unit. This is most useful with multi-dimensional restraints acting on variables that have very different units (for examples, working with length unit and degrees ${}^{\circ}$ simultaneously): a single force constant can be used for all, which is converted to the respective unit of each variable when forces are applied (the are printed at initialization time.

- hardLowerBoundary — Whether the lower boundary is the physical lower limit

Default: provided by the component $[$ boolean, context: colvar $]$

When the colvar has a “natural" boundary (for example, a distance colvar cannot go below 0) this flag is automatically enabled. For more complex variable definitions, or when lowerBoundary is provided directly by the user, it may be useful to set this flag explicitly. This option does not affect simulation results, but enables some internal optimizations by letting the code know that the variable is unable to cross the lower boundary, regardless of whether restraints are applied to it. - hardUpperBoundary — Whether the upper boundary is the physical upper limit of the colvar's
values

Default: provided by the component $[$ boolean, context: colvar $]$

Analogous to hardLowerBoundary. - expandBoundaries — Allow to expand the two boundaries if needed

Default: off $[$ boolean, context: colvar $]$

If defined, lowerBoundary and upperBoundary may be automatically expanded to accommodate colvar values that do not fit in the initial range. Currently, this option is used by the metadynamics bias (6.4) to keep all of its hills fully within the grid. Enabling this option does not affect any boundaries that are defined as “hard" (see above), or any boundaries that span the full period of a periodic colvar.

- outputValue — Output a trajectory for this colvar

Default: on $[$ boolean, context: colvar $]$

If colvarsTrajFrequency is non-zero, the value of this colvar is written to the trajectory file every colvarsTrajFrequency steps in the column labeled “$<$name$>$". - outputVelocity — Output a velocity trajectory for this colvar

Default: off $[$ boolean, context: colvar $]$

If colvarsTrajFrequency is defined, the finite-difference calculated velocity of this colvar are written to the trajectory file under the label “v_$<$name$>$". - outputEnergy — Output an energy trajectory for this colvar

Default: off $[$ boolean, context: colvar $]$

This option applies only to extended Lagrangian colvars. If colvarsTrajFrequency is defined, the kinetic energy of the extended degree and freedom and the potential energy of the restraining spring are are written to the trajectory file under the labels “Ek_$<$name$>$" and “Ep_$<$name$>$". - outputTotalForce — Output a total force trajectory for this colvar

Default: off $[$ boolean, context: colvar $]$

If colvarsTrajFrequency is defined, the total force on this colvar (i.e. the projection of all atomic total forces onto this colvar — see equation (20) in section 6.2) are written to the trajectory file under the label “fs_$<$name$>$". For extended Lagrangian colvars, the “total force" felt by the extended degree of freedom is simply the force from the harmonic spring. This force includes all of the forces computed by the force field, as well as any forces by fixes defined prior to fix colvars. Note: not all components support this option. The physical unit for this force is energy unit/(colvar unit). - outputAppliedForce — Output an applied force trajectory for this colvar

Default: off $[$ boolean, context: colvar $]$

If colvarsTrajFrequency is defined, the total force applied on this colvar by Colvars biases are written to the trajectory under the label “fa_$<$name$>$". For extended Lagrangian colvars, this force is actually applied to the extended degree of freedom rather than the geometric colvar itself. The physical unit for this force is energy unit/(colvar unit).

The following options enable extended-system dynamics, where a colvar is coupled to an additional degree of freedom (fictitious particle) by a harmonic spring. This extended coordinate masks the colvar and replaces it transparently from the perspective of biasing and analysis methods. Biasing forces are then applied to the extended degree of freedom, and the actual geometric colvar (function of Cartesian coordinates) only feels the force from the harmonic spring. This is particularly useful when combined with an abf bias to perform eABF simulations (6.3).

Note that for some biases (harmonicWalls, histogram), this masking behavior is controlled by the keyword bypassExtendedLagrangian. Specifically for harmonicWalls, the default behavior is to bypass extended Lagrangian coordinates and act directly on the actual colvars.

- extendedLagrangian — Add extended degree of freedom

Default: off $[$ boolean, context: colvar $]$

Adds a fictitious particle to be coupled to the colvar by a harmonic spring. The fictitious mass and the force constant of the coupling potential are derived from the parameters extendedTimeConstant and extendedFluctuation, described below. Biasing forces on the colvar are applied to this fictitious particle, rather than to the atoms directly. This implements the extended Lagrangian formalism used in some metadynamics simulations [3]. . - extendedFluctuation — Standard deviation between the colvar and the fictitious particle
(colvar unit)

$[$ positive decimal, context: colvar $]$

Defines the spring stiffness for the extendedLagrangian mode, by setting the typical deviation between the colvar and the extended degree of freedom due to thermal fluctuation. The spring force constant is calculated internally as ${k}_{B}T\u2215{\sigma}^{2}$, where $\sigma $ is the value of extendedFluctuation. - extendedTimeConstant — Oscillation period of the fictitious particle (fs)

Default: 200 $[$ positive decimal, context: colvar $]$

Defines the inertial mass of the fictitious particle, by setting the oscillation period of the harmonic oscillator formed by the fictitious particle and the spring. The period should be much larger than the MD time step to ensure accurate integration of the extended particle's equation of motion. The fictitious mass is calculated internally as ${k}_{B}T{(\tau \u22152\pi \sigma )}^{2}$, where $\tau $ is the period and $\sigma $ is the typical fluctuation (see above). - extendedTemp — Temperature for the extended degree of freedom (K)

Default: thermostat temperature $[$ positive decimal, context: colvar $]$

Temperature used for calculating the coupling force constant of the extended variable (see extendedFluctuation) and, if needed, as a target temperature for extended Langevin dynamics (see extendedLangevinDamping). This should normally be left at its default value. - extendedLangevinDamping — Damping factor for extended Langevin dynamics (ps${}^{-1}$)

Default: 1.0 $[$ positive decimal, context: colvar $]$

If this is non-zero, the extended degree of freedom undergoes Langevin dynamics at temperature extendedTemp. The friction force is minus extendedLangevinDamping times the velocity. This is useful because the extended dynamics coordinate may heat up in the transient non-equilibrium regime of ABF. Use moderate damping values, to limit viscous friction (potentially slowing down diffusive sampling) and stochastic noise (increasing the variance of statistical measurements). In doubt, use the default value. - reflectingLowerBoundary — Whether the lower boundary reflects the extended Lagrangian
particle

Default: off $[$ boolean, context: colvar $]$

This turns the specified lowerBoundary into a reflecting wall for the extended particle: upon collision, the particle is reflected with opposite momentum. - reflectingUpperBoundary — Whether the upper boundary reflects the extended Lagrangian
particle

Default: off $[$ boolean, context: colvar $]$

This turns the specified upperBoundary into a reflecting wall for the extended particle: upon collision, the particle is reflected with opposite momentum.

- timeStepFactor — Compute this colvar once in a certain number of timesteps

Default: 1 $[$ positive integer, context: colvar $]$

Instructs this colvar to activate at a time interval equal to the base (MD) timestep times timeStepFactor.[11] At other time steps, the value of the variable is not updated, and no biasing forces are applied. Any forces exerted by biases are accumulated over the given time interval, then applied as an impulse at the next update.

- subtractAppliedForce — Do not include biasing forces in the total force for this colvar

Default: off $[$ boolean, context: colvar $]$

If the colvar supports total force calculation (see 4.14.1), all forces applied to this colvar by biases will be removed from the total force. This keyword allows to recover some of the “system force" calculation available in the Colvars module before version 2016-08-10. Please note that removal of all other external forces (including biasing forces applied to a different colvar) is no longer supported, due to changes in the underlying simulation engines (primarily NAMD). This option may be useful when continuing a previous simulation where the removal of external/applied forces is essential. For all new simulations, the use of this option is not recommended.

Run-time calculations of statistical properties that depend explicitly on time can be performed for individual collective variables. Currently, several types of time correlation functions, running averages and running standard deviations are implemented. For run-time computation of histograms, please see the histogram bias (6.10).

- corrFunc — Calculate a time correlation function?

Default: off $[$ boolean, context: colvar $]$

Whether or not a time correlaction function should be calculated for this colvar. - corrFuncWithColvar — Colvar name for the correlation function

$[$ string, context: colvar $]$

By default, the auto-correlation function (ACF) of this colvar, ${\xi}_{i}$, is calculated. When this option is specified, the correlation function is calculated instead with another colvar, ${\xi}_{j}$, which must be of the same type (scalar, vector, or quaternion) as ${\xi}_{i}$. - corrFuncType — Type of the correlation function

Default: velocity $[$ velocity, coordinate or coordinate_p2, context: colvar $]$

With coordinate or velocity, the correlation function ${C}_{i,j}\left(t\right)$ = $\u27e8\mathrm{\Pi}\left({\xi}_{i}\left({t}_{0}\right),{\xi}_{j}({t}_{0}+t)\right)\u27e9$ is calculated between the variables ${\xi}_{i}$ and ${\xi}_{j}$, or their velocities. $\mathrm{\Pi}({\xi}_{i},{\xi}_{j})$ is the scalar product when calculated between scalar or vector values, whereas for quaternions it is the cosine between the two corresponding rotation axes. With coordinate_p2, the second order Legendre polynomial, $(3\mathrm{cos}\⁡{\left(\mathit{\theta}\right)}^{2}-1)\u22152$, is used instead of the cosine. - corrFuncNormalize — Normalize the time correlation function?

Default: on $[$ boolean, context: colvar $]$

If enabled, the value of the correlation function at $t$ = 0 is normalized to 1; otherwise, it equals to $\u27e8O\left({\xi}_{i},{\xi}_{j}\right)\u27e9$. - corrFuncLength — Length of the time correlation function

Default: 1000 $[$ positive integer, context: colvar $]$

Length (in number of points) of the time correlation function. - corrFuncStride — Stride of the time correlation function

Default: 1 $[$ positive integer, context: colvar $]$

Number of steps between two values of the time correlation function. - corrFuncOffset — Offset of the time correlation function

Default: 0 $[$ positive integer, context: colvar $]$

The starting time (in number of steps) of the time correlation function (default: $t$ = 0). Note: the value at $t$ = 0 is always used for the normalization. - corrFuncOutputFile — Output file for the time correlation function

Default: output.$<$name$>$.corrfunc.dat $[$ UNIX filename, context: colvar $]$

The time correlation function is saved in this file. - runAve — Calculate the running average and standard deviation

Default: off $[$ boolean, context: colvar $]$

Whether or not the running average and standard deviation should be calculated for this colvar. - runAveLength — Length of the running average window

Default: 1000 $[$ positive integer, context: colvar $]$

Length (in number of points) of the running average window. - runAveStride — Stride of the running average window values

Default: 1 $[$ positive integer, context: colvar $]$

Number of steps between two values within the running average window. - runAveOutputFile — Output file for the running average and standard deviation

Default: output.$<$name$>$.runave.traj $[$ UNIX filename, context: colvar $]$

The running average and standard deviation are saved in this file.

To define collective variables, atoms are usually selected as groups. Each group is defined using an identifying keyword that is unique in the context of the specific colvar component (e.g. for a distance component, the two groups are identified by the group1 and group2 keywords).

The group's identifying keyword is followed by a brace-delimited block containing selection keywords and other parameters, one of which is name:

- name — Unique name for the atom group

$[$ string, context: atom group $]$

This parameter defines a globally unique name for this atom group, which can be referred to in the definition of other atom groups (including in other colvars) by invoking atomsOfGroup as a selection keyword. This has two benefits: (1) it can make the configuration shorter and more legible, and (2) several related atom groups can be defined using a common set of atoms, so that this selection can be changed in one place, keeping all related groups synchronized with the same atom set.

Other keywords are documented in the following sections.

In the example below, the gyration component uses the identifying keyword atoms to define its associated group, which is defined based on the index group named “Protein-H". Optionally, the group is also given the unique name “my_protein", so that atom groups defined later in the Colvars configuration may refer to it.

colvar {

name rgyr

gyration {

atoms {

name my_protein

indexGroup Protein-H

}

}

}

Selection keywords may be used individually or in combination with each other, and each can be
repeated any number of times. Selection is incremental: each keyword adds the corresponding
atoms to the selection, so that different sets of atoms can be combined. However, atoms
included by multiple keywords are only counted once. Below is an example configuration
for an atom group called “atoms". Note: this is an unusually varied combination of selection
keywords, demonstrating how they can be combined together: most simulations only use one of
them.

atoms {

# add atoms 1 and 3 to this group (note: first atom in the system is 1)

atomNumbers {

1 3

}

# add atoms starting from 20 up to and including 50

atomNumbersRange 20-50

# add index group (requires a .ndx file to be provided globally)

indexGroup Water

}

The resulting selection includes atoms 1 and 3, those between 20 and 50, and those in the index group called “Water". The indices of this group are read from the file provided by the global keyword indexFile.

The complete list of selection keywords available in LAMMPS is:

- atomNumbers — List of atom numbers

$[$ space-separated list of positive integers, context: atom group $]$

This option adds to the group all the atoms whose numbers are in the list. The number of the first atom in the system is 1: to convert from a VMD selection, use “atomselect get serial". - indexGroup — Name of index group to be used (GROMACS format)

$[$ string, context: atom group $]$

If the name of an index file has been provided by indexFile, this option allows to select one index group from that file: the atoms from that index group will be used to define the current group. - atomsOfGroup — Name of group defined previously

$[$ string, context: atom group $]$

Refers to a group defined previously using its user-defined name. This adds all atoms of that named group to the current group. - atomNumbersRange — Atoms within a number range

$[$ $<$Starting number$>$-$<$Ending number$>$, context: atom group $]$

This option includes in the group all atoms whose numbers are within the range specified. The number of the first atom in the system is 1. - dummyAtom — Dummy atom position (length unit)

$[$ (x, y, z) triplet, context: atom group $]$

Instead of selecting any atom, this option makes the group a virtual particle at a fixed position in space. This is useful e.g. to replace a group's center of geometry with a user-defined position.

The following options define an automatic calculation of an optimal translation (centerToReference) or optimal rotation (rotateToReference), that superimposes the positions of this group to a provided set of reference coordinates. Alternately, centerToOrigin applies a translation to place the geometric center of the group at (0, 0, 0). This can allow, for example, to effectively remove from certain colvars the effects of molecular tumbling and of diffusion. Given the set of atomic positions ${x}_{i}$, the colvar $\xi $ can be defined on a set of roto-translated positions ${x}_{i}^{\prime}=R({x}_{i}-{x}^{C})+{x}^{ref}$. ${x}^{C}$ is the geometric center of the ${x}_{i}$, $R$ is the optimal rotation matrix to the reference positions and ${x}^{ref}$ is the geometric center of the reference positions.

Components that are defined based on pairwise distances are naturally invariant under global roto-translations. Other components are instead affected by global rotations or translations: however, they can be made invariant if they are expressed in the frame of reference of a chosen group of atoms, using the centerToReference and rotateToReference options. Finally, a few components are defined by convention using a roto-translated frame (e.g. the minimal RMSD): for these components, centerToReference and rotateToReference are enabled by default. In typical applications, the default settings result in the expected behavior.

Warning on rotating frames of reference and periodic boundary conditions. rotateToReference affects coordinates that depend on minimum-image distances in periodic boundary conditions (PBC). After rotation of the coordinates, the periodic cell vectors become irrelevant: the rotated system is effectively non-periodic. A safe way to handle this is to ensure that the relevant inter-group distance vectors remain smaller than the half-size of the periodic cell. If this is not desirable, one should avoid the rotating frame of reference, and apply orientational restraints to the reference group instead, in order to keep the orientation of the reference group consistent with the orientation of the periodic cell.

Warning on rotating frames of reference and ABF. Note that centerToReference and rotateToReference may affect the Jacobian derivative of colvar components in a way that is not taken into account by default. Be careful when using these options in ABF simulations or when using total force values.

- centerToReference — Implicitly remove translations for this group

Default: off $[$ boolean, context: atom group $]$

If this option is on, the center of geometry of the group will be aligned with that of the reference positions provided by refPositions or refPositionsFile. Colvar components will only have access to the aligned positions. Note: unless otherwise specified, rmsd and eigenvector set this option to on by default. - centerToOrigin — Implicitly remove translations for this group by keeping its center at the
origin

Default: off $[$ boolean, context: atom group $]$

This option implies centerToReference. If this option is on, coordinates from the group will be translated so that the center of geometry of the group remains at (0, 0, 0), except if fittingGroup is enabled. In that case, the translation applied is the translation that brings the center of geometry of the fitting group to (0, 0, 0). - rotateToReference — Implicitly remove rotations for this group

Default: off $[$ boolean, context: atom group $]$

If this option is on, the coordinates of this group will be optimally superimposed to the reference positions provided by refPositions or refPositionsFile. The rotation will be performed around the center of geometry if centerToReference is on, or around the origin otherwise. The algorithm used is the same employed by the orientation colvar component [4]. Forces applied to the atoms of this group will also be implicitly rotated back to the original frame. Note: unless otherwise specified, rmsd and eigenvector set this option to on by default. - refPositions — Reference positions for fitting (length unit)

$[$ space-separated list of (x, y, z) triplets, context: atom group $]$

This option provides a list of reference coordinates for centerToReference and/or rotateToReference, and is mutually exclusive with refPositionsFile. If only centerToReference is on, the list may contain a single (x, y, z) triplet; if also rotateToReference is on, the list should be as long as the atom group, and its order must match the order in which atoms were defined. - refPositionsFile — File containing the reference positions for fitting

$[$ UNIX filename, context: atom group $]$

This option provides a list of reference coordinates for centerToReference and/or rotateToReference, and is mutually exclusive with refPositions. The acceptable file format is XYZ (3.8.3), which is read in double precision. . - fittingGroup — Use an alternate set of atoms to define the roto-translation

Default: This atom group itself $[$ Atom group, context: atom group $]$

If either centerToReference or rotateToReference is defined, this keyword defines an alternate atom group to calculate the optimal roto-translation. Use this option to define a continuous rotation if the structure of the group involved changes significantly (a typical symptom would be the message “Warning: discontinuous rotation!"). Performance considerations: note that enabling this option will result in projecting each of the atomic gradients of the colvar (e.g. the RMSD) onto each the gradients of the roto-translation, which may be a computationally expensive operation: see the closely related enableFitGradients for details.

The following options have default values appropriate for the vast majority of applications, and are only provided to support rare, special cases.

- enableFitGradients — Include the roto-translational contribution to colvar gradients

Default: on $[$ boolean, context: atom group $]$

When either centerToReference or rotateToReference is on, the gradients of some colvars include terms proportional to $\partial R\u2215\partial {x}_{i}$ (rotational gradients) and $\partial {x}^{C}\u2215\partial {x}_{i}$ (translational gradients). By default, these terms are calculated and included in the total gradients; if this option is set to off, they are neglected. In the case of a minimum RMSD component, this flag is automatically disabled because the contributions of those derivatives to the gradients cancel out; other types of variable will require projecting each of the gradients of the variable onto each of the gradients of the roto-translation (i.e. a $O\left({N}^{2}\right)$ loop). When fittingGroup is enabled, the computation is a $O(N\times M)$ loop for all variables, including RMSDs.

In simulations with periodic boundary conditions (PBCs), Colvars computes all distances between two points following the nearest-image convention, using PBC parameters provided by LAMMPS. However, many common variables rely on a consistent definition of the center of mass or geometry of a group of atoms. This requires the use of unwrapped coordinates, which are not subject to “jumps" when they diffuse across periodic boundaries.

LAMMPS controls the internal availability of unwrapped coordinates using the unwrap keyword in 3.2, which defaults to yes. The user should determine whether it is appropriate to maintain the default value of unwrap, depending on the specifics of each system.

In general, internal coordinate wrapping by LAMMPS does not affect the calculation of colvars if each atom group satisfies one or more of the following:

- it is composed by only one atom;
- it is used by a colvar component which does not make use of its center of geometry, but only of pairwise distances (distanceInv, coordNum, hBond, alpha, dihedralPC);
- it is used by a colvar component that ignores the ill-defined Cartesian components of its center of mass (such as the $x$ and $y$ components of a membrane's center of mass modeled with distanceZ).

In simulations performed with MD simulation engines such as GROMACS, LAMMPS or NAMD, the computation of energy and forces is distributed (i.e., parallelized) over multiple nodes, as well as over the CPU/GPU cores of each node. When Colvars is enabled, atomic coordinates are collected on a single CPU core, where collective variables and their biases are computed. This means that in the case of simulations that are already being run over large numbers of nodes, or inside a GPU, a Colvars calculation may produce a significant overhead. This overhead comes from the combined cost of two operation: transmitting atomic coordinates, and computing functions of the same.

Performance can be improved in multiple ways:

- As a general rule, the size of atom groups should be kept relatively small (up to a few thousands of atoms, depending on the size of the entire system in comparison). For example, restraining a protein through a RMSD colvar defined over all of its atoms is only marginally different than one defined over only the $\alpha $ carbon atoms, but the difference in computational cost is much higher. To gain an estimate of the computational cost of a specific Colvars configuration, one may use a test calculation of the same colvar in VMD (hint: use the time Tcl command to measure the cost of running cv update).
- The calculation of variables, components and biases can be distributed over the processor cores of the node where the Colvars module is executed. Currently, an equal weight is assigned to each colvar, or to each component of those colvars that include more than one component. The performance of simulations that use many colvars or components is improved automatically. For simulations that use a single large colvar, it may be advisable to partition it in multiple components, which will be then distributed across the available cores. In LAMMPS, this feature is supported automatically when LAMMPS is compiled with OpenMP support. The messages “SMP parallelism is available" or “SMP parallelism is enabled", printed by Colvars at initialization time, indicate the availability or status of this feature. If available, the option is turned on by default, but may be disabled using the keyword smp if required for debugging or troubleshooting.

A biasing or analysis method can be applied to existing collective variables by using the following configuration:

$<$biastype$>$ {

name $<$name$>$

colvars $<$xi1$>$ $<$xi2$>$ ...

$<$parameters$>$

}

The keyword $<$biastype$>$ indicates the method of choice. There can be multiple instances of the same method, e.g. using multiple harmonic blocks allows defining multiple restraints.

All biasing and analysis methods implemented recognize the following options:

- name — Identifier for the bias

Default: $<$type of bias$><$bias index$>$ $[$ string, context: colvar bias $]$

This string is used to identify the bias or analysis method in the output, and to name some output files. Tip: although a unique name is assigned automatically, you are strongly encouraged to give a name to a bias that you may want to analyze later. For example, processing a trajectory file (sec. 3.8.5) containing a harmonic restraint is much simpler with a clearly identifiable name, like “smd" for a moving harmonic restraint or “us" for a static one. - colvars — Collective variables involved

$[$ space-separated list of colvar names, context: colvar bias $]$

This option selects by name all the variables to which this bias or analysis will be applied. - outputEnergy — Write the current bias energy to the trajectory file

Default: off $[$ boolean, context: colvar bias $]$

If this option is chosen and colvarsTrajFrequency is not zero, the current value of the biasing energy will be written to the trajectory file during the simulation. - outputFreq — Frequency (number of steps) at which output files are written

Default: colvarsRestartFrequency $[$ positive integer, context: colvar bias $]$

If this bias produces aggregated data that needs to be written to disk (for example, a PMF), this number specifies the number of steps after which these data are written to files. A value of zero disables writing files for this bias during the simulation (except for outputEnergy, which is controlled by colvarsTrajFrequency). All output files are also written at the end of a simulation run, regardless of the value of this number. - bypassExtendedLagrangian — Apply bias to actual colvars, bypassing extended coordinates

Default: off $[$ boolean, context: colvar bias $]$

This option is implemented by the harmonicWalls and histogram biases. It is only relevant if the bias is applied to one or several extended-Lagrangian colvars (4.19), for example within an eABF (6.3) simulation. Usually, biases use the value of the extended coordinate as a proxy for the actual colvar, and their biasing forces are applied to the extended coordinates as well. If bypassExtendedLagrangian is enabled, the bias behaves as if there were no extended coordinates, and accesses the value of the underlying colvars, applying any biasing forces along the gradients of those variables. - stepZeroData — Accumulate data starting at step 0 of a simulation run

Default: off $[$ boolean, context: colvar bias $]$

This option is meaningful for biases that record and accumulate data during a simulation, such as ABF (6.2), metadynamics (6.4), histograms (6.10) and in general any bias that accumulates free-energy samples with thermodynamic integration, or TI (6.1). When this option is disabled (default), data will only be recorded into the bias after the first coordinate update: this is generally the correct choice in simulation runs. Biasing energy and forces will always be computed for all active biases, regardless of this option. - scaledBiasingForce — Scale biasing force by a factor in an external histogram

Default: off $[$ boolean, context: colvar bias $]$

If this option is set to on, the biasing force at each step will be scaled by a factor provided in the grid of an external histogram. The histogram file is provided by scaledBiasingForceFactorsGrid. It ought to be noted that if the variables are not in any grids of the histogram, the scaling factor is 1.0. - scaledBiasingForceFactorsGrid — A histogram file with the scaling factor of biasing force
in each bin

$[$ string, context: colvar bias $]$

If scaledBiasingForce is set to on, this option accepts the filename of the histogram file that contains the scaling factors. The histogram file is expected to be in “multicolumn" format (3.8.4), similar to the low-dimensional the PMF files written by metadynamics and ABF.

The methods implemented here provide a variety of estimators of conformational free-energies. These are carried out at run-time, or with the use of post-processing tools over the generated output files. The specifics of each estimator are discussed in the documentation of each biasing or analysis method.

A special case is the traditional thermodynamic integration (TI) method, used for example to compute potentials of mean force (PMFs). Most types of restraints (6.5, 6.7, 6.8, ...) as well as metadynamics (6.4) can optionally use TI alongside their own estimator, based on the keywords documented below.

- writeTIPMF — Write the PMF computed by thermodynamic integration

Default: off $[$ boolean, context: colvar bias $]$

If the bias is applied to a variable that supports the calculation of total forces (see outputTotalForce and 4.14.1), this option allows calculating the corresponding PMF by thermodynamic integration, and writing it to the file output.$<$name$>$.ti.pmf, where $<$name$>$ is the name of the bias and the contents of the file are in multicolumn text format (3.8.4). The total force includes the forces applied to the variable by all bias, except those from this bias itself. If any bias applies time-dependent forces besides the one using this option, an error is raised. - writeTISamples — Write the free-energy gradient samples

Default: off $[$ boolean, context: colvar bias $]$

This option allows to compute total forces for use with thermodynamic integration as done by the keyword writeTIPMF. The names of the files containing the variables' histogram and mean thermodynamic forces are output.$<$name$>$.ti.count and output.$<$name$>$.ti.force, respectively: these can be used by abf_integrate (see 6.2.4) or similar utility. Note that because the .force file contains mean forces instead of free-energy gradients, abf_integrate $<$filename$>$ -s -1.0 should be used. This option is on by default when writeTIPMF is on, but can be enabled separately if the bias is applied to more than one variable, making not possible the direct integration of the PMF at runtime. If any bias applies time-dependent forces besides the one using this option, an error is raised.

In adaptive biasing force (ABF) (6.2) the above keywords are not recognized, because their functionality is either included already (conventional ABF) or not available (extended-system ABF).

For a full description of the Adaptive Biasing Force method, see reference [12]. For details about this implementation, see references [13] and [14]. When publishing research that makes use of this functionality, please cite references [12] and [14].

An alternate usage of this feature is the application of custom tabulated biasing potentials to one or more colvars. See inputPrefix and updateBias below.

Combining ABF with the extended Lagrangian feature (4.19) of the variables produces the extended-system ABF variant of the method (6.3).

ABF is based on the thermodynamic integration (TI) scheme for computing free energy profiles. The free energy as a function of a set of collective variables $\text{}\xi \text{}={\left({\xi}_{i}\right)}_{i\in [1,n]}$ is defined from the canonical distribution of $\text{}\xi \text{}$, $\mathcal{\mathcal{P}}\left(\text{}\xi \text{}\right)$:

$$A\left(\text{}\xi \text{}\right)=-\frac{1}{\beta}\mathrm{ln}\⁡\mathcal{\mathcal{P}}\left(\text{}\xi \text{}\right)+{A}_{0}$$ | (16) |

In the TI formalism, the free energy is obtained from its gradient, which is generally calculated in the form of the average of a force ${\text{}F\text{}}_{\xi}$ exerted on $\text{}\xi \text{}$, taken over an iso-$\text{}\xi \text{}$ surface:

$${\text{}\nabla \⁡\text{}}_{\xi}A\left(\text{}\xi \text{}\right)={\u27e8-{\text{}F\text{}}_{\xi}\u27e9}_{\text{}\xi \text{}}$$ | (17) |

Several formulae that take the form of (17) have been proposed. This implementation relies partly on the classic formulation [15], and partly on a more versatile scheme originating in a work by Ruiz-Montero et al. [16], generalized by den Otter [17] and extended to multiple variables by Ciccotti et al. [18]. Consider a system subject to constraints of the form ${\sigma}_{k}\left(\text{}x\text{}\right)=0$. Let ${\left({\text{}v\text{}}_{i}\right)}_{i\in [1,n]}$ be arbitrarily chosen vector fields (${\mathbb{R}}^{3N}\to {\mathbb{R}}^{3N}$) verifying, for all $i$, $j$, and $k$:

$$\begin{array}{rcll}{\text{}v\text{}}_{i}\cdot \text{}{\nabla \⁡}_{\phantom{\rule{-0.17em}{0ex}}\phantom{\rule{-0.17em}{0ex}}x}\phantom{\rule{0.17em}{0ex}}\text{}{\xi}_{j}& =& {\delta}_{ij}& \text{(18)}\text{}\text{}\\ {\text{}v\text{}}_{i}\cdot \text{}{\nabla \⁡}_{\phantom{\rule{-0.17em}{0ex}}\phantom{\rule{-0.17em}{0ex}}x}\phantom{\rule{0.17em}{0ex}}\text{}{\sigma}_{k}& =& 0& \text{(19)}\text{}\text{}\end{array}$$

then the following holds [18]:

where $V$ is the potential energy function. ${\text{}v\text{}}_{i}$ can be interpreted as the direction along which the force acting on variable ${\xi}_{i}$ is measured, whereas the second term in the average corresponds to the geometric entropy contribution that appears as a Jacobian correction in the classic formalism [15]. Condition (18) states that the direction along which the total force on ${\xi}_{i}$ is measured is orthogonal to the gradient of ${\xi}_{j}$, which means that the force measured on ${\xi}_{i}$ does not act on ${\xi}_{j}$.

Equation (19) implies that constraint forces are orthogonal to the directions along which the free energy gradient is measured, so that the measurement is effectively performed on unconstrained degrees of freedom.

In the framework of ABF, ${F}_{\xi}$ is accumulated in bins of finite size $\delta \xi $, thereby providing an estimate of the free energy gradient according to equation (17). The biasing force applied along the collective variables to overcome free energy barriers is calculated as:

where $\text{}{\nabla \⁡}_{\phantom{\rule{-0.17em}{0ex}}\phantom{\rule{-0.17em}{0ex}}x}\phantom{\rule{0.17em}{0ex}}\text{}\stackrel{~}{A}$ denotes the current estimate of the free energy gradient at the current point $\text{}\xi \text{}$ in the collective variable subspace, and $\alpha \left({N}_{\xi}\right)$ is a scaling factor that is ramped from 0 to 1 as the local number of samples ${N}_{\xi}$ increases to prevent non-equilibrium effects in the early phase of the simulation, when the gradient estimate has a large variance. See the fullSamples parameter below for details.

As sampling of the phase space proceeds, the estimate $\text{}{\nabla \⁡}_{\phantom{\rule{-0.17em}{0ex}}\phantom{\rule{-0.17em}{0ex}}x}\phantom{\rule{0.17em}{0ex}}\text{}\stackrel{~}{A}$ is progressively refined. The biasing force introduced in the equations of motion guarantees that in the bin centered around $\text{}\xi \text{}$, the forces acting along the selected collective variables average to zero over time. Eventually, as the underlying free energy surface is canceled by the adaptive bias, evolution of the system along $\text{}\xi \text{}$ is governed mainly by diffusion. Although this implementation of ABF can in principle be used in arbitrary dimension, a higher-dimension collective variable space is likely to be difficult to sample and visualize. Most commonly, the number of variables is one or two, sometimes three.

The following conditions must be met for an ABF simulation to be possible and to produce an accurate estimate of the free energy profile. Note that these requirements do not apply when using the extended-system ABF method (6.3).

- Only linear combinations of colvar components can be used in ABF calculations.
- Availability of total forces is necessary. The following colvar components can be used in ABF calculations: distance, distance_xy, distance_z, angle, dihedral, gyration, rmsd and eigenvector. Atom groups may not be replaced by dummy atoms, unless they are excluded from the force measurement by specifying oneSiteTotalForce, if available.
- Mutual orthogonality of colvars. In a multidimensional ABF calculation, equation (18) must be satisfied for any
two colvars ${\xi}_{i}$
and ${\xi}_{j}$.
Various cases fulfill this orthogonality condition:
- ${\xi}_{i}$ and ${\xi}_{j}$ are based on non-overlapping sets of atoms.
- atoms involved in the force measurement on ${\xi}_{i}$ do not participate in the definition of ${\xi}_{j}$. This can be obtained using the option oneSiteTotalForce of the distance, angle, and dihedral components (example: Ramachandran angles $\varphi $, $\psi $).
- ${\xi}_{i}$ and ${\xi}_{j}$ are orthogonal by construction. Useful cases are the sum and difference of two components, or distance_z and distance_xy using the same axis.

- Mutual orthogonality of components: when several components are combined into a colvar, it is assumed that their vectors ${\text{}v\text{}}_{i}$ (equation (20)) are mutually orthogonal. The cases described for colvars in the previous paragraph apply.
- Orthogonality of colvars and constraints: equation 19 can be satisfied in two simple ways, if either no constrained atoms are involved in the force measurement (see point 3 above) or pairs of atoms joined by a constrained bond are part of an atom group which only intervenes through its center (center of mass or geometric center) in the force measurement. In the latter case, the contributions of the two atoms to the left-hand side of equation 19 cancel out. For example, all atoms of a rigid TIP3P water molecule can safely be included in an atom group used in a distance component.

ABF depends on parameters from each collective variable to define the grid on which free energy gradients are computed: see 4.17 for detauls. Other parameters to control the ABF runtime can be set in the ABF configuration block:

- name — same definition as name (biasing and analysis methods)
- colvars — same definition as colvars (biasing and analysis methods)
- outputEnergy — same definition as outputEnergy (biasing and analysis methods)
- outputFreq — same definition as outputFreq (biasing and analysis methods)
- stepZeroData — same definition as stepZeroData (biasing and analysis methods)
- fullSamples — Number of samples in a bin prior to full application of the ABF

Default: 200 $[$ positive integer, context: abf $]$

To avoid non-equilibrium effects due to large fluctuations of the force exerted along the colvars, it is recommended to apply a biasing force only after a the estimate has started converging. If fullSamples is non-zero, the applied biasing force is scaled by a factor $\alpha \left({N}_{\xi}\right)$ between 0 and 1. If the number of samples ${N}_{\xi}$ in the current bin is higher than fullSamples, the factor is one. If it is less than minSamples (by default, half of fullSamples), the factor is zero and no bias is applied. Between those two thresholds, the factor follows a linear ramp from 0 to 1: $\alpha \left({N}_{\xi}\right)=({N}_{\xi}-minSamples)\u2215(fullSamples-minSamples)$. - minSamples — Number of samples in a bin prior to application of the ABF

Default: fullSamples / 2 $[$ positive integer, context: abf $]$

See fullSamples. - maxForce — Maximum magnitude of the ABF force

Default: disabled $[$ positive decimals (one per colvar), context: abf $]$

This option enforces a cap on the magnitude of the biasing force effectively applied by this ABF bias on each colvar. This can be useful in the presence of singularities in the PMF such as hard walls, where the discretization of the average force becomes very inaccurate, causing the colvar's diffusion to get “stuck" at the singularity. To enable this cap, provide one non-negative value for each colvar. The unit of force is energy unit/(colvar unit). - hideJacobian — Remove geometric entropy term from calculated free energy gradient?

Default: no $[$ boolean, context: abf $]$

In a few special cases, most notably distance-based variables, an alternate definition of the potential of mean force is traditionally used, which excludes the Jacobian term describing the effect of geometric entropy on the distribution of the variable. This results, for example, in particle-particle potentials of mean force being flat at large separations. The Jacobian term is exactly represented in equation (20) by the second term of the average, $-{k}_{B}T\text{}{\nabla \⁡}_{\phantom{\rule{-0.17em}{0ex}}\phantom{\rule{-0.17em}{0ex}}x}\phantom{\rule{0.17em}{0ex}}\text{}\cdot {\text{}v\text{}}_{i}$. Enabling the hideJacobian option causes the output data to follow the traditional potential of mean force convention, by omitting this contribution from the measured free energy gradients. To ensure uniform sampling despite the incomplete description of the free energy, an additional biasing force that counteracts the Jacobian force is applied internally by the colvar. Warning: using this option without detailed knowledge of the terms of equation (20) is not recommended. Warning: a bug affecting Colvars version until October 2020 leads to this term to be subtracted twice in the PMFs reported by conventional ABF. The bug does not affect the simulated trajectory, and the correct PMF can be recovered by adding back the term manually. Other than conventional ABF, the PMFs computed by other sampling methods were never affected. - historyFreq — Frequency (in timesteps) at which ABF history files are accumulated

Default: 0 $[$ positive integer, context: abf $]$

If this number is non-zero, the free energy gradient estimate and sampling histogram (and the PMF in one-dimensional calculations) are written to files on disk at the given time interval. History file names use the same prefix as output files, with “.hist" appended (output.hist.pmf). historyFreq must be a multiple of outputFreq. - inputPrefix — Filename prefix for reading ABF data

$[$ list of strings, context: abf $]$

If this parameter is set, for each item in the list, ABF tries to read a gradient and a sampling files named $<$inputPrefix$>$.grad and $<$inputPrefix$>$.count. This is done at startup and sets the initial state of the ABF algorithm. The data from all provided files is combined appropriately. Also, the grid definition (min and max values, width) need not be the same that for the current run. This command is useful to piece together data from simulations in different regions of collective variable space, or change the colvar boundary values and widths. Note that it is not recommended to use it to switch to a smaller width, as that will leave some bins empty in the finer data grid. This option is NOT compatible with reading the data from a restart file (input keyword of the fix ID group-ID colvars command). - applyBias — Apply the ABF bias?

Default: yes $[$ boolean, context: abf $]$

If this is set to no, the calculation proceeds normally but the adaptive biasing force is not applied. Data is still collected to compute the free energy gradient. This is mostly intended for testing purposes, and should not be used in routine simulations. - updateBias — Update the ABF bias?

Default: yes $[$ boolean, context: abf $]$

If this is set to no, the initial biasing force (e.g. read from a restart file or through inputPrefix) is not updated during the simulation. As a result, a constant bias is applied. This can be used to apply a custom, tabulated biasing potential to any combination of colvars. To that effect, one should prepare a gradient file containing the gradient of the potential to be applied (negative of the bias force), and a count file containing only values greater than fullSamples. These files must match the grid parameters of the colvars.

The ABF bias produces the following files, all in multicolumn text format (3.8.4):

- output.grad: current estimate of the free energy gradient (grid), in multicolumn;
- output.count: histogram of samples collected, on the same grid;
- output.pmf: integrated free energy profile or PMF (for dimension 1, and dimension 2 or 3).

Also in the case of one-dimensional calculations, the ABF bias can report its current energy via outputEnergy; in higher dimensions, such computation is not implemented and the energy reported is zero.

If several ABF biases are defined concurrently, their name is inserted to produce unique filenames for output, as in output.abf1.grad. This should not be done routinely and could lead to meaningless results: only do it if you know what you are doing!

If the colvar space has been partitioned into sections (windows) in which independent ABF simulations have been run, the resulting data can be merged using the inputPrefix option described above (a run of 0 steps is enough).

The ABF method only produces an estimate of the free energy gradient. The free energy surface itself can be computed depending on the value of integrate and related options.

- integrate — Integrate free energy surface from ABF gradients (dim < 3)

Default: yes $[$ boolean, context: abf $]$

This option, active by default when the dimension of the colvar space is 3 or less, enables the calculation of an integrated free energy surface every time ABF output files are written. In dimension 2 or 3, integration is performed by solving a Poisson equation: [19]$${\nabla \⁡}^{2}{A}_{t}=\nabla \⁡\cdot {G}_{t}$$ (22) wehere ${G}_{t}$ is the estimated gradient at time $t$, and ${A}_{t}$ is corresponding free energy surface. The free energy surface is written under the file name <outputName>.pmf, in a plain text format (see 3.8.4) that can be read by most data plotting and analysis programs (e.g. Gnuplot). Periodic boundary conditions are applied to periodic coordinates, and Neumann boundary conditions otherwise (imposed free energy gradient at the boundary of the domain). The grid used for free energy discretization is extended by one point along non-periodic coordinates, but not along periodic coordinates. See ref. [19] for details.

- integrateTol — Tolerance for free energy integration

Default: 1e-6 $[$ positive decimal, context: abf $]$

The conjugate gradients algorithm used to integrate the free energy surface is stopped when the RMS error reaches integrateTol. - integrateMaxIterations — Maximum iterations for free energy integration

Default: 10000 $[$ integer, context: abf $]$

The conjugate gradients algorithm used to integrate the free energy surface is stopped when the number of iterations reaches integrateMaxIterations, unless the RMS error has reached integrateTol before.

In dimension 4 or greater, integrating the discretized gradient becomes non-trivial. The standalone utility abf_integrate is provided to perform that task. Because 4D ABF calculations are uncommon, this tool is practically deprecated by the Poisson integration described above.

abf_integrate reads the gradient data and uses it to perform a Monte-Carlo (M-C) simulation in discretized collective variable space (specifically, on the same grid used by ABF to discretize the free energy gradient). By default, a history-dependent bias (similar in spirit to metadynamics) is used: at each M-C step, the bias at the current position is incremented by a preset amount (the hill height). Upon convergence, this bias counteracts optimally the underlying gradient; it is negated to obtain the estimate of the free energy surface.

abf_integrate is invoked using the command-line:

abf_integrate <gradient_file> [-n <nsteps>] [-t <temp>] [-m (0|1)] [-h <hill_height>] [-f
<factor>]

The gradient file name is provided first, followed by other parameters in any order. They are described below, with their default value in square brackets:

- -n: number of M-C steps to be performed; by default, a minimal number of steps is chosen based on the size of the grid, and the integration runs until a convergence criterion is satisfied (based on the RMSD between the target gradient and the real PMF gradient)
- -t: temperature for M-C sampling; expects kcal/mol as energy unit (unrelated to the simulation temperature) [500 K]
- -s: scaling factor for the gradients; when using a histogram of total forces obtained from outputTotalForce or the .force file written by writeTISamples, a scaling factor of -1 should be used [1.0]
- -m: use metadynamics-like biased sampling? (0 = false) [1]
- -h: increment for the history-dependent bias (“hill height") [0.01 kcal/mol]
- -f: if non-zero, this factor is used to scale the increment stepwise in the second half of the M-C sampling to refine the free energy estimate [0.5]

Using the default values of all parameters should give reasonable results in most cases.

abf_integrate produces the following output files:

- <gradient_file>.pmf: computed free energy surface
- <gradient_file>.histo: histogram of M-C sampling (not usable in a straightforward way if the history-dependent bias has been applied)
- <gradient_file>.est: estimated gradient of the calculated free energy surface (from finite differences)
- <gradient_file>.dev: deviation between the user-provided numerical gradient and the actual gradient of the calculated free energy surface. The RMS norm of this vector field is used as a convergence criterion and output periodically during integration.

Note: Typically, the “deviation" vector field does not vanish as the integration converges. This happens because the numerical estimate of the gradient does not exactly derive from a potential, due to numerical approximations used to obtain it (finite sampling and discretization on a grid). See Ref.[19] for details.

Extended-system ABF (eABF) is a variant of ABF (6.2) where the bias is not applied directly to the collective variable, but to an extended coordinate (“fictitious variable") $\lambda $ that evolves dynamically according to Newtonian or Langevin dynamics. Such an extended coordinate is enabled for a given colvar using the extendedLagrangian and associated keywords (4.19). The theory of eABF and the present implementation are documented in detail in reference [20].

Defining an ABF bias on a colvar wherein the extendedLagrangian option is active will perform eABF automatically; there is no dedicated option.

The extended variable $\lambda $ is coupled to the colvar $z=\xi \left(q\right)$ by the harmonic potential $(k\u22152){(z-\lambda )}^{2}$. Under eABF dynamics, the adaptive bias on $\lambda $ is the running estimate of the average spring force:

$${F}^{bias}\left({\lambda}^{\ast}\right)={\u27e8k(\lambda -z)\u27e9}_{{\lambda}^{\ast}}$$ | (23) |

where the angle brackets indicate a canonical average conditioned by $\lambda ={\lambda}^{\ast}$. At long simulation times, eABF produces a flat histogram of the extended variable $\lambda $, and a flattened histogram of $\xi $, whose exact shape depends on the strength of the coupling as defined by extendedFluctuation in the colvar. Coupling should be somewhat loose for faster exploration and convergence, but strong enough that the bias does help overcome barriers along the colvar $\xi $.[20] Distribution of the colvar may be assessed by plotting its histogram, which is written to the output.zcount file in every eABF simulation. Note that a histogram bias (6.10) applied to an extended-Lagrangian colvar will access the extended degree of freedom $\lambda $, not the original colvar $\xi $; however, the joint histogram may be explicitly requested by listing the name of the colvar twice in a row within the colvars parameter of the histogram block.

The eABF PMF is that of the coordinate $\lambda $, it is not exactly the free energy profile of $\xi $. That quantity can be calculated based on the CZAR estimator.

The corrected z-averaged restraint (CZAR) estimator is described in detail in reference [20]. It is computed automatically in eABF simulations, regardless of the number of colvars involved. Note that ABF may also be applied on a combination of extended and non-extended colvars; in that case, CZAR still provides an unbiased estimate of the free energy gradient.

CZAR estimates the free energy gradient as:

$${A}^{\prime}\left(z\right)=-\frac{1}{\beta}\frac{d\mathrm{ln}\⁡\stackrel{~}{\rho}\left(z\right)}{dz}+k({\u27e8\lambda \u27e9}_{z}-z).$$ | (24) |

where $z=\xi \left(q\right)$ is the colvar, $\lambda $ is the extended variable harmonically coupled to $z$ with a force constant $k$, and $\stackrel{~}{\rho}\left(z\right)$ is the observed distribution (histogram) of $z$, affected by the eABF bias.

Parameters for the CZAR estimator are:

- CZARestimator — Calculate CZAR estimator of the free energy?

Default: yes $[$ boolean, context: abf $]$

This option is only available when ABF is performed on extended-Lagrangian colvars. When enabled, it triggers calculation of the free energy following the CZAR estimator. - writeCZARwindowFile — Write internal data from CZAR to a separate file?
